ASUS NUC 12 Pro Kit NUC12WSKi3 i3-1220PDDR4M.2 NVMeLAN2xHDMI4xUSBEU cord

System

Processor

CPU

Intel Core i3 Mobile Processor 1220P

CPU Core Quantity

10

Threads Quantity

12

CPU Socket Standard

Socket 1744

CPU Installed Quantity

1

CPU Maximum Quantity Supports

1

CPU Cache Size

12 MB

Quantity of Mainboards Supported

1

Memory

Memory Type

DDR4 SDRAM

Memory Form Factor

SODIMM 260-pin

Memory Speed

3200MHz(PC4-25600)

Provides Error Checking Method

Non-ECC

Maximum Installable System Memory Storage Capacity

64 GB

Memory Slot Total Quantity

2

Memory Features

Two DDR Channels

XMP

Controller

Integrated

Storage Controller:

PCI Express 4.0 x4 (M.2 (Key M))

Storage Controller:

PCI-Express 3.0 x1 (M.2 (Key B))

Storage Controller:

SATA III-600 (1)

Plug-in-card

Wi-Fi Controller:

Intel Wi-Fi 6E AX211 M.2 (Key E)

Video Output

Video Controller Form Factor

Integrated

Video Chipset

Intel Iris Xe Graphics

Video Memory Type

Shared Video Memory

Audio Output

Audio Controller Form Factor

integrated

Audio Output Mode

7.1 Channel Surround

Compliant Audio Standards

High Definition Audio

Networking Specifications

Networking Form Factor

Integrated

LAN Chipset

Intel i225-V

LAN

Gigabit Ethernet

Wi-Fi

IEEE 802.11ax Wi-Fi 6

Bluetooth

Bluetooth 5.2

Data Link Protocol Supports

Gigabit Ethernet/Fast Ethernet/Ethernet

Bay Provided

M.2 Slot Quantity

3

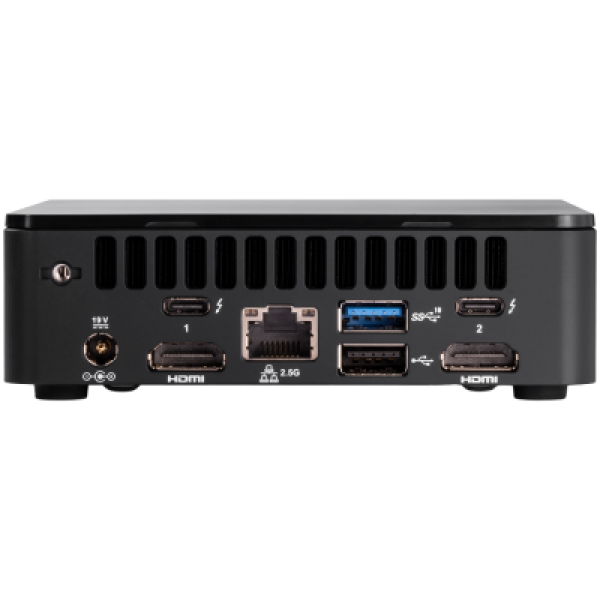

Interface Provided

Thunderbolt 4

2 (USB Type-C)

HDMI

2 (HDMI (Type A))

LAN

1 (RJ-45)

USB 3.2

3 (USB 3.2 (type A))

USB 2.0

1 (USB 2.0 (type A))

Headset Port

1 (3.5-mm minijack)

Power

Power Device Type

Power Supply

Power Device Location

Internal

Miscellaneous

External Color

Black

Mounting Capability

Desktop

Cable Included

Power Cable (EU Plug)

Dimensions & Weight Device

Height (mm)

112 mm

Depth (mm)

117 mm

Width (mm)

54 mm

Logistic

Pack Weight Brutto (kg)

1.42 kg

Pack Weight Netto (kg)

1.2 kg

Pieces in pack

1

Box Weight Brutto (kg)

1.42 kg

Packs in Box

1

Package Type

Retail
