BlackView MP100 AMD R7 5825U16GB512GB1xHDMI+1xDPRJ45BTWiFIW11P Black

BlackView MP100 AMD R7 5825U/16GB/512GB/1xHDMI+1xDP/RJ45/BT/WiFI/W11P Black

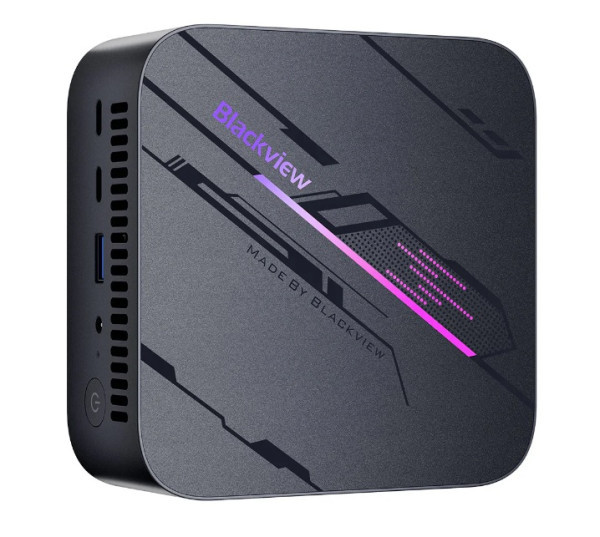

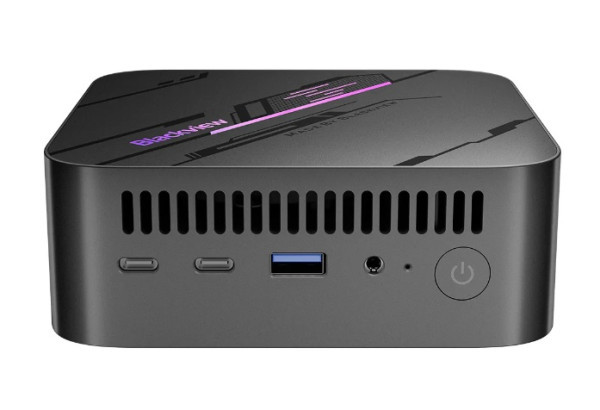

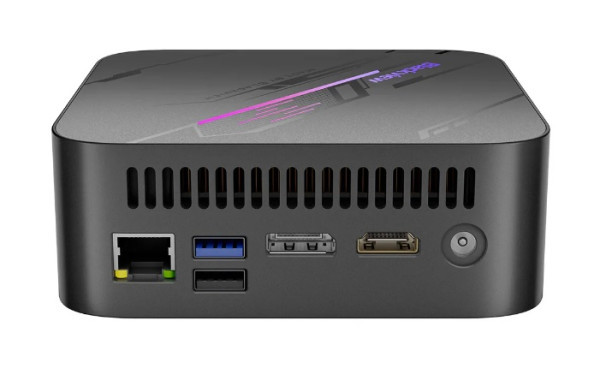

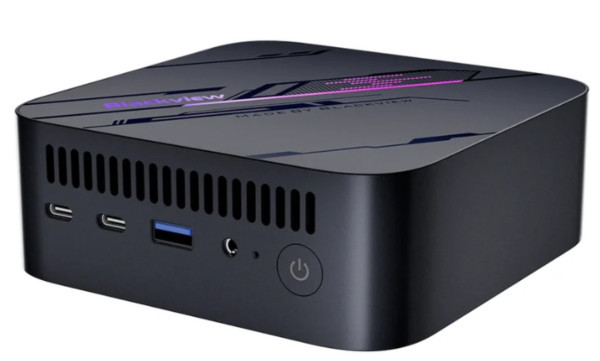

Product Appearance

Type

Spec.

Standard Configuration

Product

Product Type

MINI PC

Dimension

127*127*45mm

Case Material

Plastic+Metals

System Hardware Configuration

Type

Spec.

Description

CPU

Model

AMD Ryzen™ 7 5700U

Lithography

TSMC 7nm FinFET

Total Cores

8 Core ,16 Threads

Cache

L2 cache 4MB,L3 cache 8MB

Speed

1.8GHz

Max. Turbo Speed

4.3 GHz

Power Consumption

25W

GPU

Model

AMD Radeon™ Graphics

Cores

8 Core

Speed

1900MHz

Max Resolution

Max Resolution (HDMI) 3840x2160@60Hz,Max Resolution (DP)  3840x2160@144Hz,Max Resolution (Type C)  3840x2160@60Hz

Memory

Model

2*SODIMM  LPDDR4 (Up to 64GB)

Speed

3200MHz

Capacity

DDR4 Flush-mount,single channel  16GB / Dual channel 32GB

Storage

SSD

512GB&1TB(M.2  2280 PCIE3.0 SSD)

Interface type

1* M.2  2280 NVME +1*NVME/SATA3.0,Up to 2TB

2.5'' SSD

Optional, 2.5 inch 7mm SATA port SSD/HDD, Max 2TB

RTC

BIOS

Real-time Clock, Time Boot

Auto Power On

BIOS

Support auto power on after electrified

Diskless Network

BIOS

Support uefi/Legacy Diskless Switch On

TPM

CPU integratesTPM

Support TPM 2.0

multi-screen display

Video Output

In the system, HDMI1+DP two-screen display and Type-C three-screen display are supported(Any Type-C port, but does not support dual Type-C simultaneous display)

Heat-dissipating method

Heat-dissipating method

Copper tube + copper fin + fan

FAN

FAN

5V~0.5A/2.5W /Rated Speed2250rpm

LED

State

Button light: blue light running, red light sleeping, atmosphere light: running breathing color RGB (The ambient light is not adjustable and cannot be turned off)

Internet Connection

Type

Spec.

Description

WIFI

Model

M.2 E_Key

Protocol

IEEE 802.11 a, b/g, n, ac,ax

Bluetooth

Model

M.2 E_Key

Protocol

Support Bluetooth 5.2

3G

Built-in

No

4G

Built-in

No

Ethernet

LAN1

10M/100M/1000M Self-adaption

I/O

Type

Spec.

Description

USB

USB2.0

USB2.0 Type-A*1 480Mbps

USB

USB3.0

USB3.2 Gen2 Type-A*2 10Gbps

TF

Expansion Memory

No

HDMI

AV Output

HDMI 2.0b(Max 4K 60HZ)*1

DP

AV Output

DP1.4(Max 4K 144HZ)*1

VGA

Video Output

No

RJ45

Gigabyte Ethernet

RJ45 1000Mbps *1  Self-adaption

Type C

Data Transmission

Type_C *2(full-featured)10Gbps/Max 4K 60HZ

POWER

Power Button

x1

DC IN

Power Supply Input

5.5/2.1mm DC Jack x1

Audio-in/out

Audio-in/out

3.5mm Phone Jack x1 (Two-in-one interface)

Antenna1

FPC Antenna

WiFi 2.4+5G+BT x1

Antenna2

FPC Antenna

WIFI 6.0

SIM

Micro SIM

No Supporting

Software Configuration

Type

Spec.

Description

OS

Version

Win11 pro

Environment

Type

Spec.

Description

Environment

Working Temperature

0~40?

Memory Temperature

-20~60?

Humidity

90% @ 40 °C (No Condensation)
