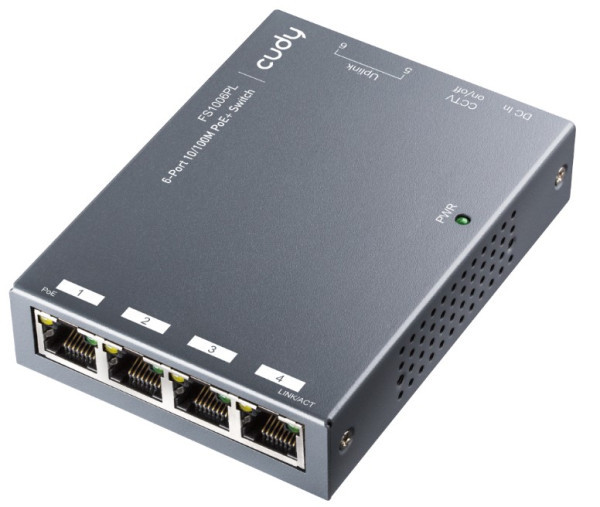

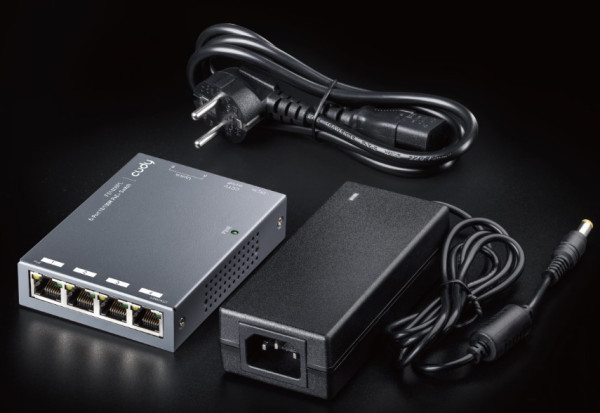

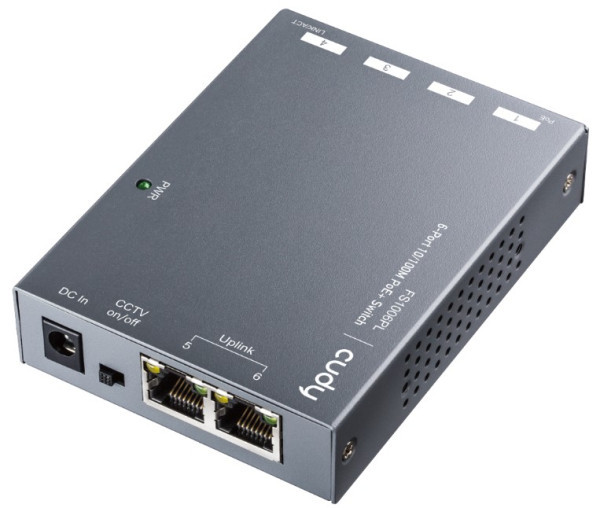

Cudy FS1006PL 6-Port 10/100M PoE+ Switch, 60W external, max 32W/PoE, UPLINK, 250m, 4KV protection

(Alternative : Tenda TEF1106P-4-63W) 6-Port 10/100M PoE+ Switch 60 watts PoE power supply, up to 30 watts per port 4 10/100M PoE ports + 2 10/100M uplink ports CCTV mode support remote PoE feeding up to 250m LED for easy monitoring LNK/ACT/PoE status IEEE 802.3at / IEEE 802.3af standard compliant Plug&play, simple setup with no configuration needed Specifications Model FS1006PL Power Power supply External Power Adaptor Voltage Range DC48~57V Switch Consumption <5W Ethernet Speed 1~5 Port : 10/100Mbps, Uplink:100Mbps Transmission Distanc 1-4port 100Meters with 100Mpbs 200Meters with 10Mbps Uplink:100Meter with 100Mpbs Network Switch Ethernet Standard IEEE 802.3/802.3u/802.3af/802.3at Switching capacity 1.2G Transfer Rate 14,880pps for 10Mbps 14,8800pps for 100Mbps MAC Address 1K MAC address table Function On — The vlan and 200meters is start to work Link/ACT On Green The port is connecting Blinks — The port is receiving or transmitting data Off — The port is not linked successfully with the device POE On Orange PD is connected Off — No PD is connected or power forw arding fails Capacity 55W Bandwidth PoE pin assignmnet V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) Environment Working Temperature 0~40? Storage Temperature -40~70? Humidity Non condesing 0~85% Mechanical Dimension 102mm×75x22mm Color Gray
