Cudy FS1018PS1 16-Port 10/100M PoE+ Switch, 1Gbit Uplink + 1 Gbit Combo SFP Port, 200W( PFS4218-16ET
- Proizvod iz grupe: IP kamere, IP mrežni snimači
- Proizvođač: CUDY
- Na stanju
Šifra: 15409
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
10.310,00
Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
alt for Dahua: PFS4218-16ET-240 , PFS3117-16ET-135

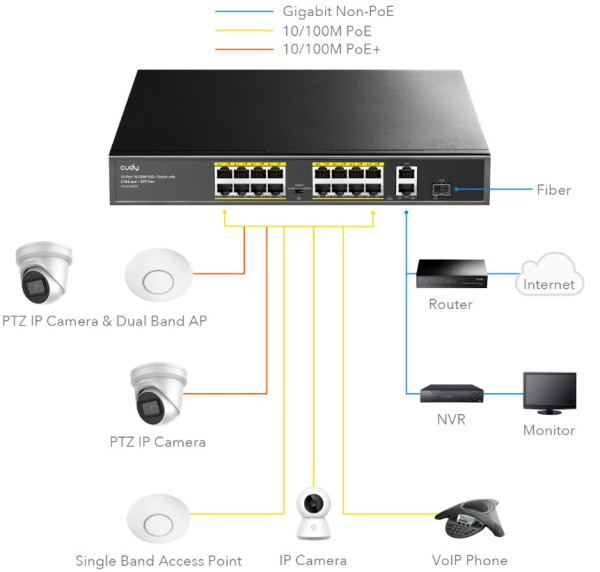

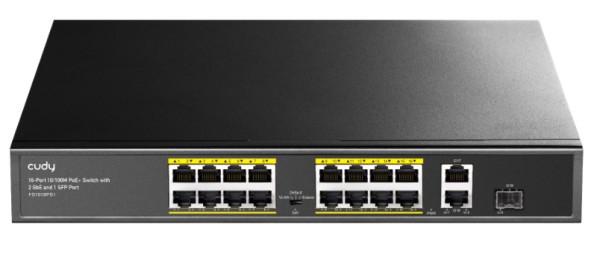

16-Port 10/100M PoE+ Switch with 1 Combo SFP Port
200 watts PoE power supply, up to 30 watts per port
2 10/100/1000M uplink ports +1 SFP Port
16 10/100M PoE+ ports
CCTV mode support remote PoE feeding up to 250m
VLAN mode isolate each PoE Ports for security
IEEE 802.3at / IEEE 802.3af standard compliant

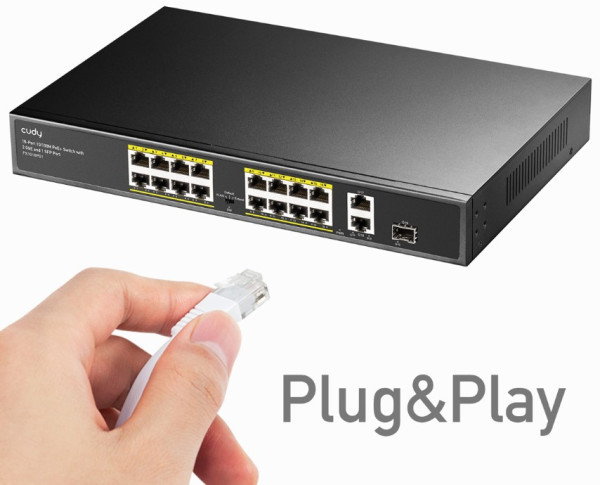

Plug&play, simple setup with no configuration needed
Watchdog reactivates the abnormalPD by resuming POE power
Mode FS1018PS1
Power Power Supply Built-in power supply
Voltage Range AC100~240V
Consumption 190W for 16 PoE
Ethernet Speed 1~16 Port: 10/100/Mbps
G1(combo):10/100/1000Mbps & 1.25bps
G2:10/100/1000Mbps
Transmission Distance 100Meter(328ft)for RJ-45
The distance is determined by the optical module
The optical module is optional
Network
Switch Ethenet Standard IEEE 802.3 802.3u 802.3ab 802.3af/at
Switching Capacity 7.2G
Transfer Rate 14880 pps for 10Mbps
148800 pps for 100Mbps
1488000 pps for 1000Mbps
MAC Adsress 4K MAC sddress table
Link/ACT On(Green) The port is connecting
Blinks The port is receiving or transmitting data.
Off The port is notl inked successfully with the device
POE On(Oranfe) PD is connected
Off No PD is connected or power forwarding fails
PoE Pin Assignmnet V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6)
Environment Working Temperature 0~40°C
Storage Temperature -40~70°C
Humidity Non Condesing 0~85%
Mechanical Dimension L*W*H 280*180*44mm
Color Gray
16-Port 10/100M PoE+ Switch with 1 Combo SFP Port
200 watts PoE power supply, up to 30 watts per port
2 10/100/1000M uplink ports +1 SFP Port
16 10/100M PoE+ ports
CCTV mode support remote PoE feeding up to 250m
VLAN mode isolate each PoE Ports for security
IEEE 802.3at / IEEE 802.3af standard compliant
Plug&play, simple setup with no configuration needed
Watchdog reactivates the abnormalPD by resuming POE power
Mode FS1018PS1
Power Power Supply Built-in power supply
Voltage Range AC100~240V
Consumption 190W for 16 PoE
Ethernet Speed 1~16 Port: 10/100/Mbps
G1(combo):10/100/1000Mbps & 1.25bps
G2:10/100/1000Mbps
Transmission Distance 100Meter(328ft)for RJ-45
The distance is determined by the optical module
The optical module is optional
Network
Switch Ethenet Standard IEEE 802.3 802.3u 802.3ab 802.3af/at
Switching Capacity 7.2G
Transfer Rate 14880 pps for 10Mbps
148800 pps for 100Mbps
1488000 pps for 1000Mbps
MAC Adsress 4K MAC sddress table
Link/ACT On(Green) The port is connecting
Blinks The port is receiving or transmitting data.
Off The port is notl inked successfully with the device
POE On(Oranfe) PD is connected
Off No PD is connected or power forwarding fails
PoE Pin Assignmnet V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6)
Environment Working Temperature 0~40°C
Storage Temperature -40~70°C
Humidity Non Condesing 0~85%
Mechanical Dimension L*W*H 280*180*44mm
Color Gray
- Naziv artikla:
- Cudy FS1018PS1 16-Port 10/100M PoE+ Switch, 1Gbit Uplink + 1 Gbit Combo SFP Port, 200W( PFS4218-16ET
- Naziv i vrsta robe:
- IP kamere, IP mrežni snimači
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
alt for Dahua: PFS4218-16ET-240 , PFS3117-16ET-135
16-Port 10/100M PoE+ Switch with 1 Combo SFP Port
200 watts PoE power supply, up to 30 watts per port
2 10/100/1000M uplink ports +1 SFP Port
16 10/100M PoE+ ports
CCTV mode support remote PoE feeding up to 250m
VLAN mode isolate each PoE Ports for security
IEEE 802.3at / IEEE 802.3af standard compliant
Plug&play, simple setup with no configuration needed
Watchdog reactivates the abnormalPD by resuming POE power
Mode FS1018PS1
Power Power Supply Built-in power supply
Voltage Range AC100~240V
Consumption 190W for 16 PoE
Ethernet Speed 1~16 Port: 10/100/Mbps
G1(combo):10/100/1000Mbps & 1.25bps
G2:10/100/1000Mbps
Transmission Distance 100Meter(328ft)for RJ-45
The distance is determined by the optical module
The optical module is optional
Network
Switch Ethenet Standard IEEE 802.3 802.3u 802.3ab 802.3af/at
Switching Capacity 7.2G
Transfer Rate 14880 pps for 10Mbps
148800 pps for 100Mbps
1488000 pps for 1000Mbps
MAC Adsress 4K MAC sddress table
Link/ACT On(Green) The port is connecting
Blinks The port is receiving or transmitting data.
Off The port is notl inked successfully with the device
POE On(Oranfe) PD is connected
Off No PD is connected or power forwarding fails
PoE Pin Assignmnet V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6)
Environment Working Temperature 0~40°C
Storage Temperature -40~70°C
Humidity Non Condesing 0~85%
Mechanical Dimension L*W*H 280*180*44mm
Color Gray
