Cudy GS105 metalni Cudy GS105D 5-Port Gbit Desktop Switch, 5x RJ45 10/100/1000 (Alt. G1005)
- Proizvod iz grupe: Mrežna oprema
- Proizvođač: CUDY
- Na stanju
Šifra: 29431
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
1.270,00
Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
-Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
-5 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
-Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
-Store-and-Forward switching method
-Supports 16K MAC address auto-learning and auto-agin
Standard configurati: 5 10/100/1000M RJ-45 adaptive ports
Switching Capacity: 10Gbps
Throughput: 7.44Mpps
Packet Buffer: 1M
MAC Address: 1K
Jumbo Frame: 2K
Transfer Mode: Store and forward
MTBF: 100000 hour
Network protocol:
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
Industry Standard
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)?EN61000-4-4 (EFT)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Network Medium
10Base-T : Cat3,4,5 or above UTP(=100m)
100Base-TX : Cat5 or above UTP(=100m)
1000Base-TX : Cat5 or aboveUTP(=100m)
Working Temperature:-10~50°C
Storage Temperature:-40~70°C
Working Humidity :10%~90%,non-condensing
Storage Temperature:5%~90%,non-condensing
Working Height:Maximum10,000 feet
Storage heigh:Maximum 10,000 feet
LED Indicators PWR(Power indicator)?Link(Network Link)?LOOP(Loop alarm)
DIP Switch
VLAN:Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5;
Default:Default mode, Support loop alarm;

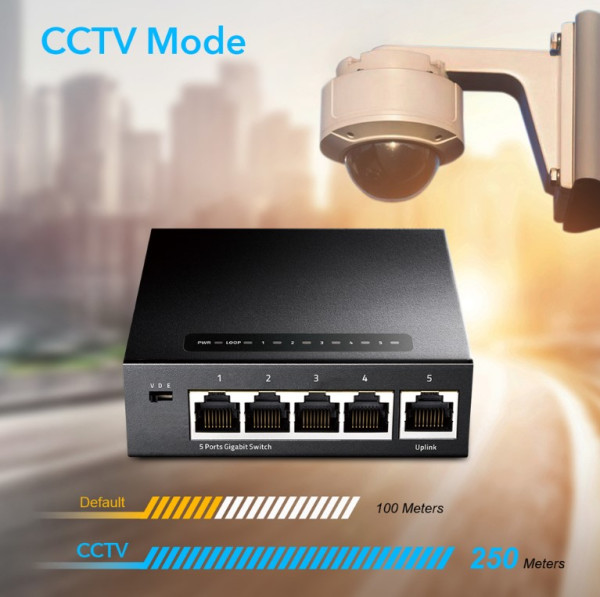

Extend:Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 7 and port 8 as uplink port
Product Size:100*70*26mm
Package Size:175*120*63mm
Product Net-Weight:0.2kg
Product Gross-Weight:0.4kg
-5 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
-Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
-Store-and-Forward switching method
-Supports 16K MAC address auto-learning and auto-agin
Standard configurati: 5 10/100/1000M RJ-45 adaptive ports
Switching Capacity: 10Gbps
Throughput: 7.44Mpps
Packet Buffer: 1M
MAC Address: 1K
Jumbo Frame: 2K
Transfer Mode: Store and forward
MTBF: 100000 hour
Network protocol:
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
Industry Standard
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)?EN61000-4-4 (EFT)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Network Medium
10Base-T : Cat3,4,5 or above UTP(=100m)
100Base-TX : Cat5 or above UTP(=100m)
1000Base-TX : Cat5 or aboveUTP(=100m)
Working Temperature:-10~50°C
Storage Temperature:-40~70°C
Working Humidity :10%~90%,non-condensing
Storage Temperature:5%~90%,non-condensing
Working Height:Maximum10,000 feet
Storage heigh:Maximum 10,000 feet
LED Indicators PWR(Power indicator)?Link(Network Link)?LOOP(Loop alarm)
DIP Switch
VLAN:Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5;
Default:Default mode, Support loop alarm;
Extend:Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 7 and port 8 as uplink port
Product Size:100*70*26mm
Package Size:175*120*63mm
Product Net-Weight:0.2kg
Product Gross-Weight:0.4kg
- Naziv artikla:
- Cudy GS105 metalni Cudy GS105D 5-Port Gbit Desktop Switch, 5x RJ45 10/100/1000 (Alt. G1005)
- Naziv i vrsta robe:
- Mrežna oprema
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
-Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
-5 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
-Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
-Store-and-Forward switching method
-Supports 16K MAC address auto-learning and auto-agin
Standard configurati: 5 10/100/1000M RJ-45 adaptive ports
Switching Capacity: 10Gbps
Throughput: 7.44Mpps
Packet Buffer: 1M
MAC Address: 1K
Jumbo Frame: 2K
Transfer Mode: Store and forward
MTBF: 100000 hour
Network protocol:
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
Industry Standard
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)?EN61000-4-4 (EFT)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Network Medium
10Base-T : Cat3,4,5 or above UTP(=100m)
100Base-TX : Cat5 or above UTP(=100m)
1000Base-TX : Cat5 or aboveUTP(=100m)
Working Temperature:-10~50°C
Storage Temperature:-40~70°C
Working Humidity :10%~90%,non-condensing
Storage Temperature:5%~90%,non-condensing
Working Height:Maximum10,000 feet
Storage heigh:Maximum 10,000 feet
LED Indicators PWR(Power indicator)?Link(Network Link)?LOOP(Loop alarm)
DIP Switch
VLAN:Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5;
Default:Default mode, Support loop alarm;
Extend:Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 7 and port 8 as uplink port
Product Size:100*70*26mm
Package Size:175*120*63mm
Product Net-Weight:0.2kg
Product Gross-Weight:0.4kg
