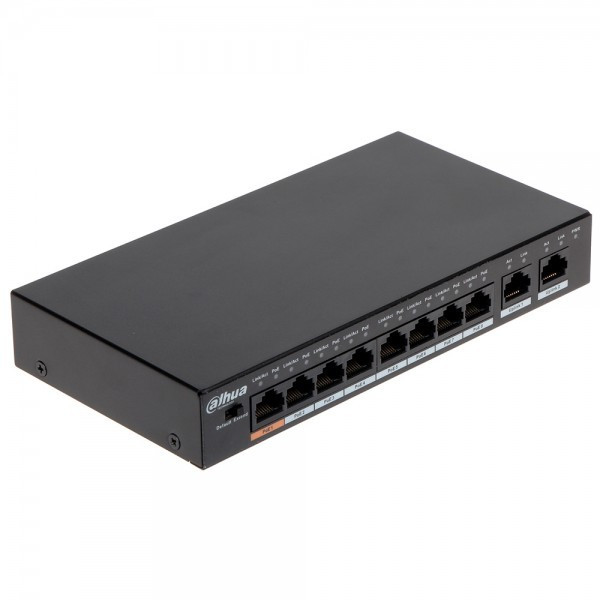

DAHUA SWITCH PFS3010-8ET-96 10/100 RJ45 ports, POE SWITCH 8 kanala
- Proizvod iz grupe: Video nadzor, Sigurosni sistemi i Mrežna oprema
- Proizvođač: DAHUA
- Na stanju
Šifra: 11464
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
14.030,00
Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
8-Port PoE Switch (neupravljiv)
Layer dva PoE switch
2*10/100/1000Mbps ports UPLINK
8*10/100Mbps PoE ports(Poe power consumption: Port1=60W, Port2-8=30W, Total=96W, Power supply: DC 48-57V, Dual power backup,
Data Transmission Port
Data Transmission Port
Port 1–8: 8 × RJ-45 10/100 Mbps (PoE)
Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)
Power Supply 48 V - 57 V DC
Operaing Temperature –10 °C to +55 °C (+14°F to +131°F)
Operating Humidity 5% – 95% (RH)
Storage Temperature –20 °C to +70 °C (–4°F to +158°F)
Storage Humidity 5% – 95% (RH)
Power Consumption Idling: 3 W
Full load: 96 W
Capacity 5.60 Gbps
Packet Forwarding Rate 4.17 Mpps
Packet Buffer Memory 4 Mbit
MAC Table Size 8K
Communication Standard IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x
PoE PoE Standard
IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power 96 W
Power Consumption Management Yes
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE 250 m long distance PoE transmission
PoE Watchdog Yes
Statics Protection
Air discharge: 8 kV
Contact discharge: 6 kV
Thunder-proof
Common mode: 4 kV
Differential mode: 2 kV
Net Weight 0.50 kg (1.10 lb)
Gross Weight 1.32 kg (2.91 lb)
Product Dimensions 190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18")
Layer dva PoE switch
2*10/100/1000Mbps ports UPLINK
8*10/100Mbps PoE ports(Poe power consumption: Port1=60W, Port2-8=30W, Total=96W, Power supply: DC 48-57V, Dual power backup,
Data Transmission Port
Data Transmission Port
Port 1–8: 8 × RJ-45 10/100 Mbps (PoE)
Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)
Power Supply 48 V - 57 V DC
Operaing Temperature –10 °C to +55 °C (+14°F to +131°F)
Operating Humidity 5% – 95% (RH)
Storage Temperature –20 °C to +70 °C (–4°F to +158°F)
Storage Humidity 5% – 95% (RH)
Power Consumption Idling: 3 W
Full load: 96 W
Capacity 5.60 Gbps
Packet Forwarding Rate 4.17 Mpps
Packet Buffer Memory 4 Mbit
MAC Table Size 8K
Communication Standard IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x
PoE PoE Standard
IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power 96 W
Power Consumption Management Yes
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE 250 m long distance PoE transmission
PoE Watchdog Yes
Statics Protection
Air discharge: 8 kV
Contact discharge: 6 kV
Thunder-proof
Common mode: 4 kV
Differential mode: 2 kV
Net Weight 0.50 kg (1.10 lb)
Gross Weight 1.32 kg (2.91 lb)
Product Dimensions 190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18")
- Naziv artikla:
- DAHUA SWITCH PFS3010-8ET-96 10/100 RJ45 ports, POE SWITCH 8 kanala
- Naziv i vrsta robe:
- Video nadzor, Sigurosni sistemi i Mrežna oprema
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
8-Port PoE Switch (neupravljiv)
Layer dva PoE switch
2*10/100/1000Mbps ports UPLINK
8*10/100Mbps PoE ports(Poe power consumption: Port1=60W, Port2-8=30W, Total=96W, Power supply: DC 48-57V, Dual power backup,
Data Transmission Port
Data Transmission Port
Port 1–8: 8 × RJ-45 10/100 Mbps (PoE)
Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)
Power Supply 48 V - 57 V DC
Operaing Temperature –10 °C to +55 °C (+14°F to +131°F)
Operating Humidity 5% – 95% (RH)
Storage Temperature –20 °C to +70 °C (–4°F to +158°F)
Storage Humidity 5% – 95% (RH)
Power Consumption Idling: 3 W
Full load: 96 W
Capacity 5.60 Gbps
Packet Forwarding Rate 4.17 Mpps
Packet Buffer Memory 4 Mbit
MAC Table Size 8K
Communication Standard IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x
PoE PoE Standard
IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power 96 W
Power Consumption Management Yes
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE 250 m long distance PoE transmission
PoE Watchdog Yes
Statics Protection
Air discharge: 8 kV
Contact discharge: 6 kV
Thunder-proof
Common mode: 4 kV
Differential mode: 2 kV
Net Weight 0.50 kg (1.10 lb)
Gross Weight 1.32 kg (2.91 lb)
Product Dimensions 190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18")
