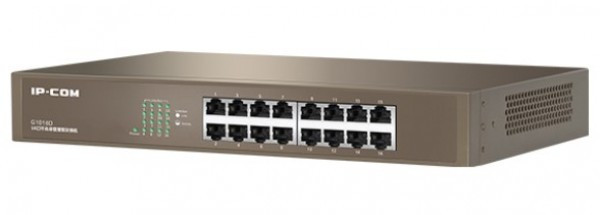

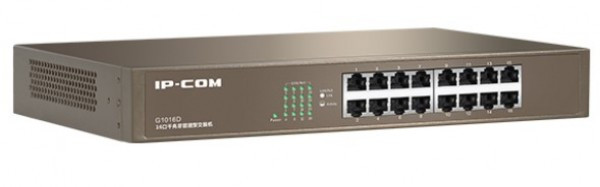

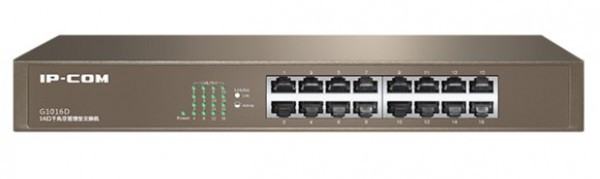

IP-COM G1016D LAN 16-Port 10/100/1000M Base-T/TX Ethernet ports (MDI/MDIX) Desk or rack(alt=TEG1016D

IP-COM G1016D is a 16-port gigabit unmanaged desktop/rack switch designed for video surveillance in offices, work groups, and SMEs for easy, economical and high-speed internet purposes. Its full duplex transmission rate can reach up to 2000 Mbps, ensuring the timely transfer of large files as well as smooth streaming videos. The professional integrated lightening protection circuit, the built-in power supply module, and all the 16 ports could withstand 6 kV lightning surge, ensuring the switch to run stably. G1016D is your ideal choice for extension, or upgrade to high-speed and stable gigabit wired network. Compliant with IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab standards 16*10/100/1000 Mbps auto-negotiation RJ45 ports Auto MDI/MDIX 8K MAC address ,MAC auto Learning & Auto Aging IEEE 802.3x full duplex flow control, and backpressure half duplex flow control 32 Gbps switching fabric for non-blocking line-speed forwarding LED indicators for indicating working status and troubleshooting Built-in power supply system with 6 kV common mode and 4 kV differtiatial mode lightning protection 16 ports all with 6 kV common mode lightning protection IP camera connection Plug and play Standard IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3ab Forwarding Speed 10Mbps : 14880pps 100Mbps : 148800pps 1000Mbps : 1488000pps Transmission Media 10BASE-T: UTP category 3, 4, 5 cable 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable Port 16*10/100/1000Mbps auto-negotiation RJ45 ports (Auto MDI/MDIX) LED Indication 16*Link/Act indicator,1*power indicator Dimensions 294mm×178mm×44mm Switch Feature Store-and-Forward MAC auto Learning & Auto Aging 8K MAC 32Gbps Backpanel bandwidth Lighting Proof lightning protection 6KV for power supply,6KV for all ports Power Input 100~240V AC,50/60Hz Operating Environment Temperature:0?~45? Humidity:10%~90% non-condensing Storage Environment emperature:-40?~70? Humidity: 5%~90% non-condensing tenda
