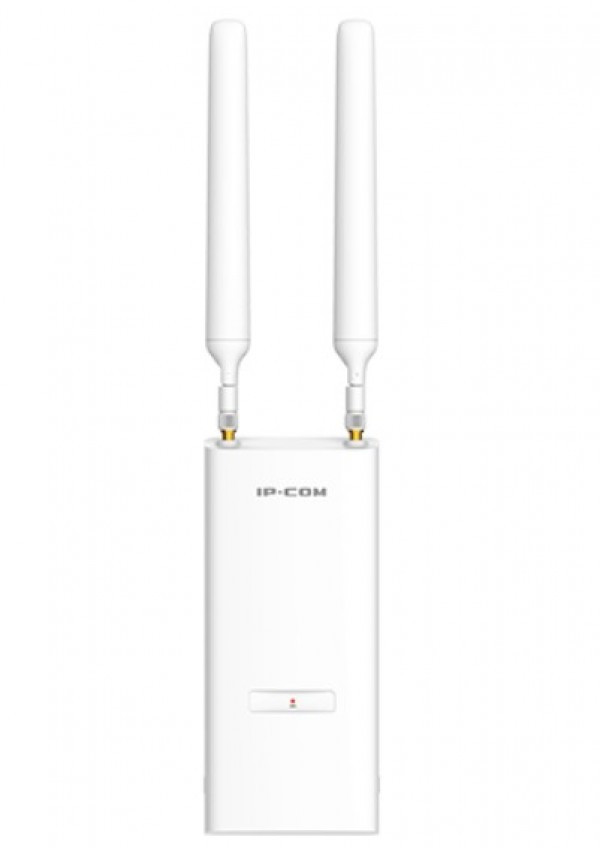

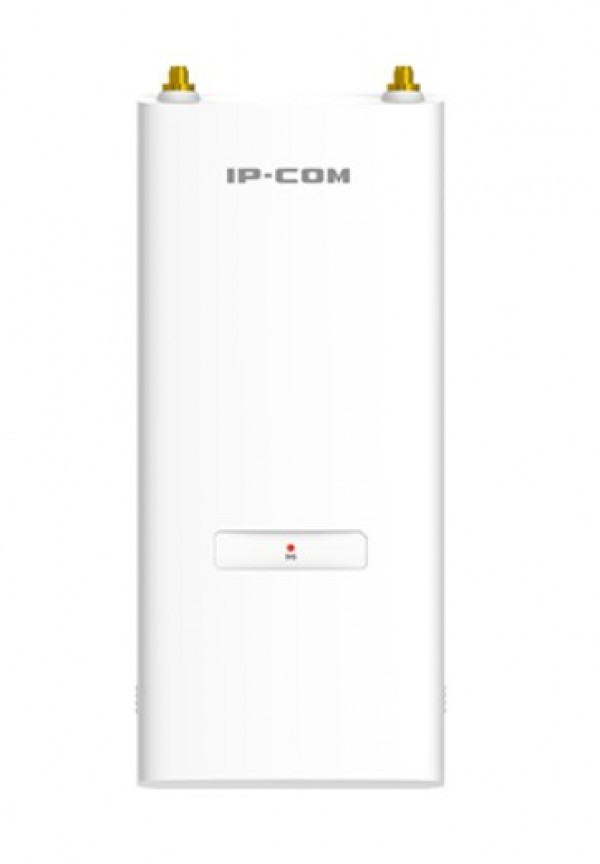

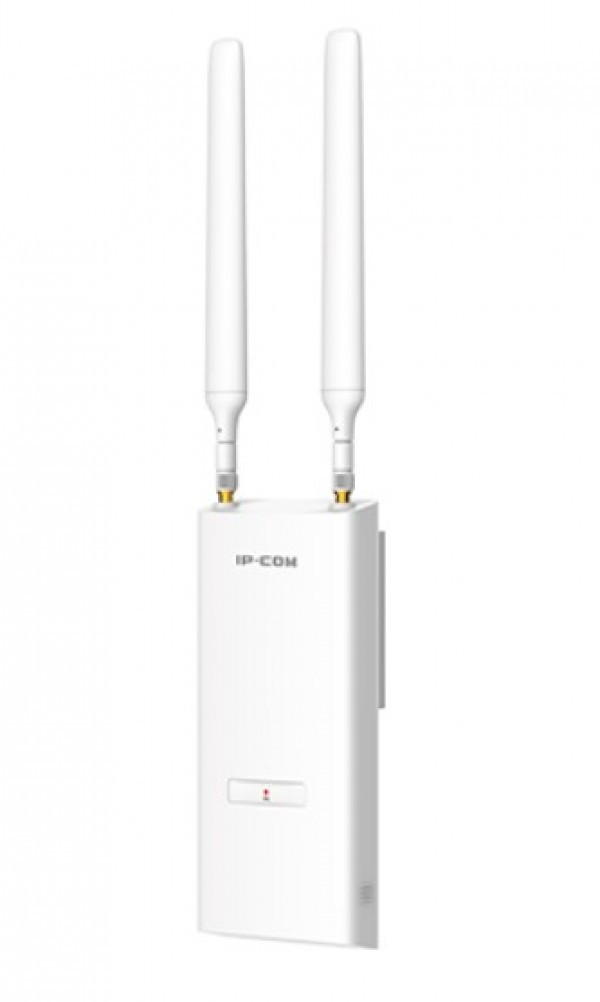

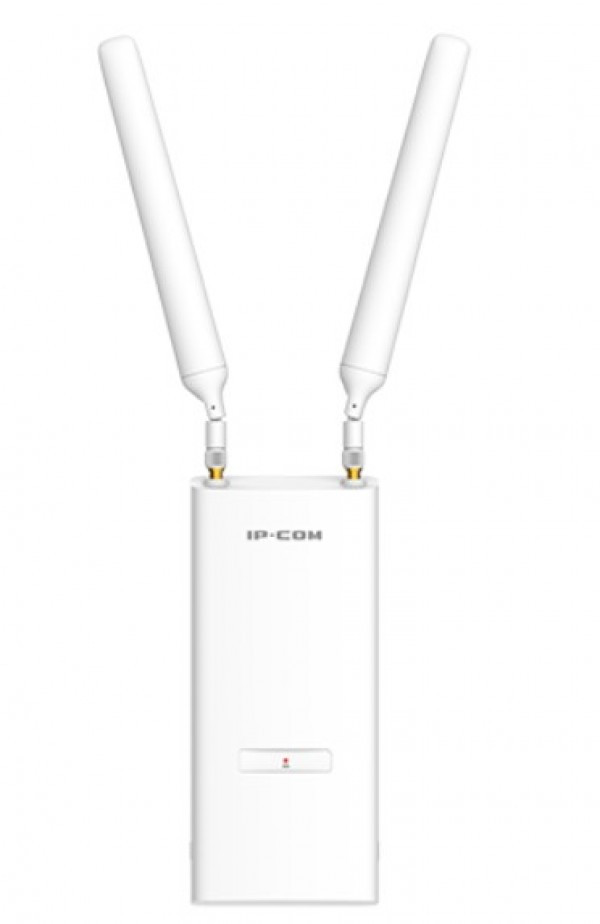

IP-COM IUAP-AC-M Access Point Indoor/Outdoor WiFi Dual-Band 2,4+5GHz AP, Client+AP, MU-MIMO, 200m

The gigabit dual-band indoor/outdoor access point iUAP-AC-M offers a concurrent data rate as high as 1167 Mbps. Equipped with 2 omni-directional high-gain antennas, iUAP-AC-M provides a maximum coverage radius of 200 meters. iUAP-AC-M can be installed either on the wall or around a pole. iUAP-AC-M can meet different requirements by connecting antennas of different specifications to the standard RP-SMA connectors. With the IP65 enclosure, iUAP-AC-M is designed for wireless coverage in factories, warehouses and other harsh outdoor environments. Durable IP65 enclosure for outdoor Wi-Fi applications MU-MIMO technology for high throughput Concurrent dual-band data rate up to 1167 Mbps (2.4 GHz: 300 Mbps; 5 GHz: 867 Mbps) Detachable antennas and 2 RP-SMA connectors Coverage radius of 200 meters Mounting Pole Mounting and Wall Mounting Dimensions 194.7*83*42.1 mm Hardware Specifications Frequency band 2.4 GHz, 5 GHz Wireless standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac 2.4 GHz data rate 1 - 300 Mbps 5 GHz data rate 6 - 867 Mbps Ethernet port 1*10/100/1000 Base-TX port Button 1*Reset LED indicator 1*SYS Waterproof level IP65 Lightning protection 6000 V Max. power consumption 11.5 W (Full-load) Power supply standard IEEE 802.3af/at & 24V, 0.5A Passive PoE Antenna 2*5dBi,RP-SMA Connector 2.4 GHz Max. output power 26 +/- 1.5 dBm 5 GHz Max. output power 26 +/-1.5 dBm 802.11b RX sensitivity -93 dBm 2.4 GHz 802.11n (MCS7) RX sensitivity -72 dBm 5 GHz 802.11a RX sensitivity -93 dBm 5 GHz 802.11n (MCS7) RX sensitivity -74 dBm Software Specifications Operating modes AP, Client+AP Hide SSID Supported Max. No. of SSID 2.4 GHz: 8 5 GHz: 4 Max. connected clients 2.4 GHz: 128 5 GHz: 256 WEP Supported WPA-PSK AES/TKIP WPA2-PSK AES/TKIP WPA Supported WPA2 Supported Access control MAC address-based Adjustable power transmit Supported Frequency analysis Supported AP isolation Supported Connected client control Supported RSSI threshold Supported WMM Supported VLAN tagging for SSID Supported Transmission power Adjustable by 1 dBm LED indicator control Supported Diagnostics tool Ping, Traceroute Scheduled reboot Supported Reboot at specified interval Supported Management Web UI System logs Supported Firmware upgrade Local and AC upgrade Reboot Local and AC reboot Reset Local and AC reset Backup configuration Supported Restore configuration Supported Operating Environment Default login IP address 192.168.0.254 Default user name admin Default password admin Operating temperature -10? - 45? Operating humidity (10% - 90%) RH, non-condensing Storage temperature -30? - 70? Storage humidity (10% - 90%) RH, non-condensing tenda
