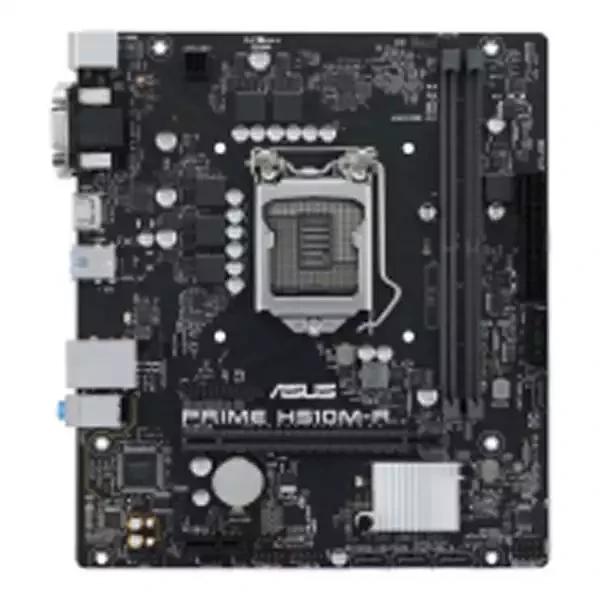

Matična ploča 1200 Asus PRIME H510M-R-SI VGADVIHDMI
- Proizvod iz grupe: Matične ploče
- Proizvođač: ASUS
- Nema na stanju
Šifra: 49416
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
7.150,00
Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
| Tip procesora | Intel |
| Podnožje | Intel® 1200 |
| Čipset | Intel H510 |
| Format ploče | Micro ATX |
| Podržani procesori | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 andIntel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Podržana memorija | DDR4 |
| Memorija | 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC,Un-buffered Memory *Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively,Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Integrisana grafička karta | Integrated Graphics Processor *1 x D-Sub1 x DVI-D1 x HDMI 1.4b*Graphics specifications may vary between CPU types. |
| Slotovi za proširenje | Intel® 10th Gen Processors1 x PCIe 3.0 x16 (x16 mode)Intel® H410 Chipset2 x PCIe 3.0 x1 |
| Storage | Total supports 1 x M.2 slots and 4 x SATA 6Gb/s portsIntel® H410 Chipset :1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(SATA & PCIE 3.0 X2 mode)*14 x SATA 6Gb/s port(s) |
| Mrežna karta | Realtek® RTL8111H |
| Zvučna karta | Realtek ALC887 7.1-Channel High Definition Audio CODEC *2- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking,up to 24-Bit/192kHz playbackAudio Feature :- LED-illuminated design- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors |
| USB | Rear USB Port ( Total 4 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)4 x USB 2.0 port(s) |
| Konektori na zadnjoj strani | 1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 1 Type-A2 x USB 2.03 x Audio jack(s) |
| Interni konektori | 1 x CPU Fan connector(s)2 x Chassis Fan connector(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280storage devices support (SATA & PCIE 3.0 X2 mode)1 x SPI TPM header1 x COM port(s) connector(s)4 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x Speaker connector |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS |
- Naziv artikla:
- Matična ploča 1200 Asus PRIME H510M-R-SI VGADVIHDMI
- Naziv i vrsta robe:
- Matične ploče
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
| Tip procesora | Intel |
| Podnožje | Intel® 1200 |
| Čipset | Intel H510 |
| Format ploče | Micro ATX |
| Podržani procesori | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 andIntel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Podržana memorija | DDR4 |
| Memorija | 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC,Un-buffered Memory *Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively,Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Integrisana grafička karta | Integrated Graphics Processor *1 x D-Sub1 x DVI-D1 x HDMI 1.4b*Graphics specifications may vary between CPU types. |
| Slotovi za proširenje | Intel® 10th Gen Processors1 x PCIe 3.0 x16 (x16 mode)Intel® H410 Chipset2 x PCIe 3.0 x1 |
| Storage | Total supports 1 x M.2 slots and 4 x SATA 6Gb/s portsIntel® H410 Chipset :1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(SATA & PCIE 3.0 X2 mode)*14 x SATA 6Gb/s port(s) |
| Mrežna karta | Realtek® RTL8111H |
| Zvučna karta | Realtek ALC887 7.1-Channel High Definition Audio CODEC *2- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking,up to 24-Bit/192kHz playbackAudio Feature :- LED-illuminated design- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors |
| USB | Rear USB Port ( Total 4 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)4 x USB 2.0 port(s) |
| Konektori na zadnjoj strani | 1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 1 Type-A2 x USB 2.03 x Audio jack(s) |
| Interni konektori | 1 x CPU Fan connector(s)2 x Chassis Fan connector(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280storage devices support (SATA & PCIE 3.0 X2 mode)1 x SPI TPM header1 x COM port(s) connector(s)4 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x Speaker connector |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS |
