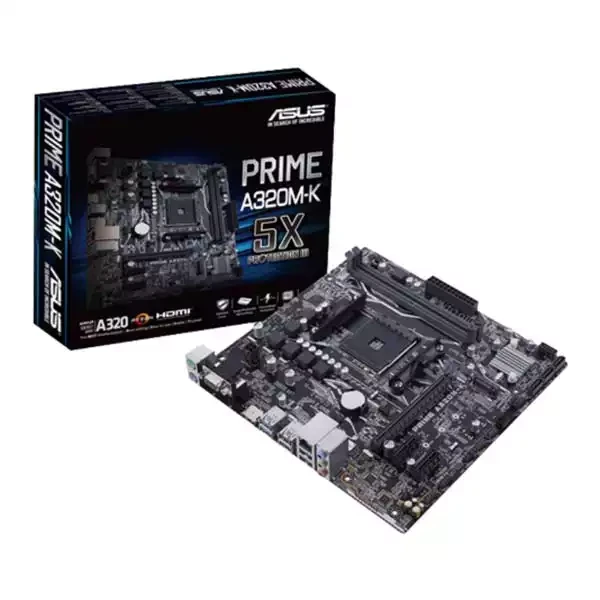

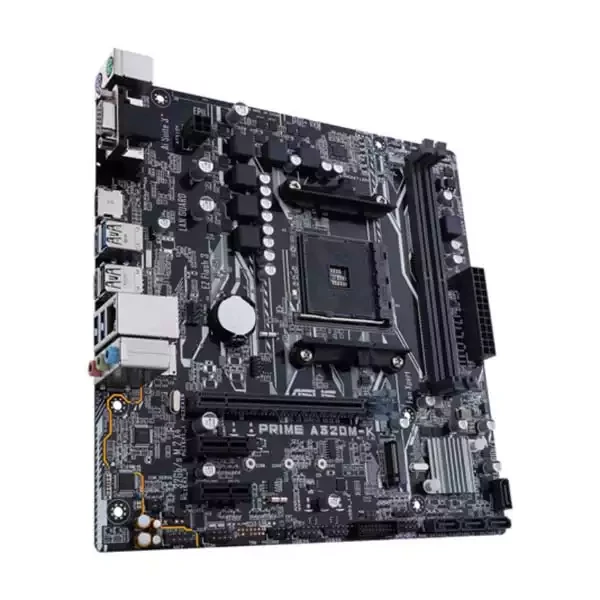

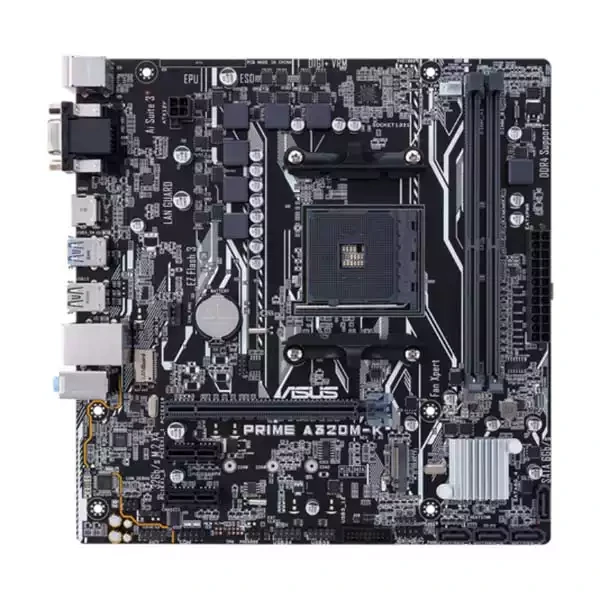

Matična ploča AM4 Asus Prime A320M-K VGAHDMIM.2
- Proizvod iz grupe: Matične ploče
- Proizvođač: ASUS
- Nema na stanju
Šifra: 63180
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
6.680,00
Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
| Tip procesora | AMD |
| Podnožje | AMD® AM4 |
| Čipset | AMD® A320 |
| Format ploče | Micro ATX |
| Podržani procesori | AMD procesori AM4 podnožja AMD Ryzen™/sedma generacija A-series/Athlon™ procesoraPodržava procesore do 8 jezgra. |
| Podržana memorija | DDR4 |
| Memorija | AMD Ryzen™ procesori2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered MemoryAMD sedma generacija A-series/Athlon™ procesora2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered MemoryDvo-kanalna memorijska arhitektura* Hyper DIMM podrška zavisi od karakteristika procesora |
| Integrisana grafička karta | Podrška za integrisanu AMD Radeon™ R serije grafiku u sedmoj generaciji A-serije APU procesoraDva izlaza: HDMI/ RGB- Podržava HDMI 1.4b sa maksimalnom rezolucijom 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz- Podržava RGB sa maksimalnom rezolucijom 1920 x 1200 @ 60 HzMaksimalna deljena memorija 2048 MB |
| Slotovi za proširenje | AMD Ryzen™ Processors1 x PCIe 3.0/2.0 x16 (x16 mode)AMD 7th Generation A-series/Athlon™ Processors1 x PCIe 3.0/2.0 x16 (x8 mode)AMD A320 chipset2 x PCIe 2.0 x1 |
| Storage | AMD A320 chipset :4 x SATA 6Gb/s port(s), gray,Podržava Raid 0, 1, 10AMD Ryzen™ Processors :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)AMD 7th Generation A-series/Athlon™ Processors :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
| Mrežna karta | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Zvučna karta | Realtek® ALC887 8-Channel High Definition Audio CODEC |
| USB | AMD Ryzen™/7th Generation A-series/Athlon™ Processors :4 x USB 3.1 Gen 1 port(s) (4 na zadnjem panelu, plavi)AMD A320 chipset :2 x USB 3.1 Gen 1 port(s) (2 preko internog konektora)AMD A320 chipset :6 x USB 2.0 port(s) (2 na zadnjem panelu, , 4 preko internog konektora) |

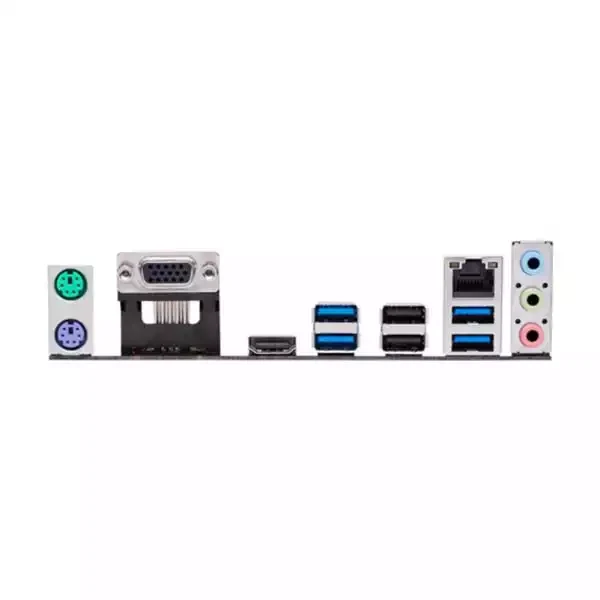

| Konektori na zadnjoj strani | 1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.1 Gen 1 Gen 1 (blue)2 x USB 2.03 x Audio jack(s) |
| Interni konektori | 1 x USB 3.0 Gen 1 connector(s) support(s) additional 2 USB 3.0 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x COM port(s) connector(s)4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x Chassis Fan connector(s) (1 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Clear CMOS jumper(s)1 x Speaker connector |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
| Ostalo | ASUS 5X Protection III :- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: 6 Phase digital power designASUS Exclusive Features :- AI Suite 3- Ai ChargerASUS Quiet Thermal Solution :- Stylish Fanless Design Heat-sink solution- ASUS Fan XpertASUS EZ DIY :- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- Multi-language BIOSASUS Q-Design :- ASUS Q-Slot- ASUS Q-DIMM |
