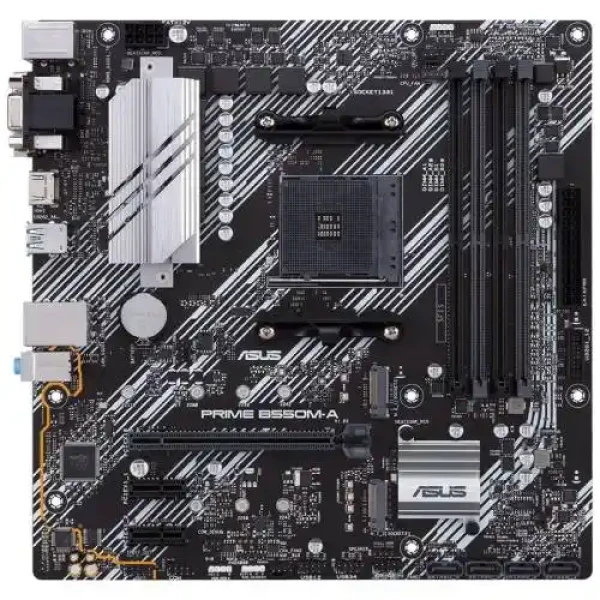

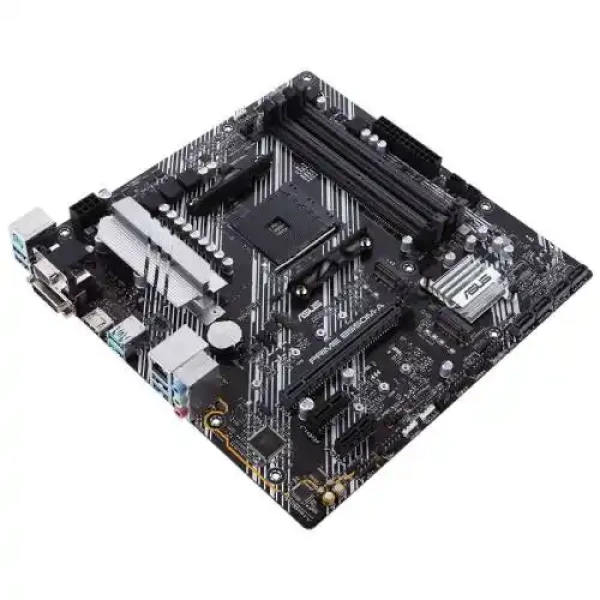

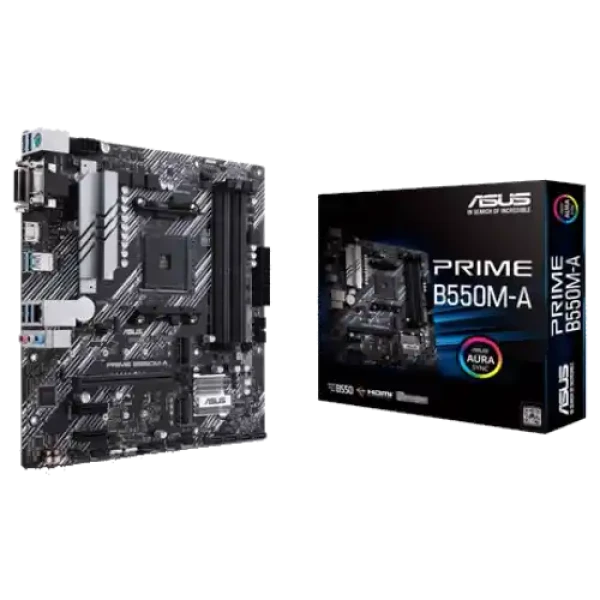

Matična ploča Asus B550M-ACSM DVIHDMIM.2
- Proizvod iz grupe: Matične ploče
- Proizvođač: ASUS
- Nema na stanju
Šifra: 48867
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
11.210,00
Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
| Tip procesora: | AMD |
| Podnožje: | AMD® AM4 |
| Čipset: | AMD® B550 |
| Format ploče: | Micro ATX |
| Podržana memorija: | DDR4 |
| Podržani procesori: | - Treća generacija AMD Ryzen procesora |
| Memorija: | 3rd Gen AMD Ryzen procesori - 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.) /3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Next Generation AMD Ryzen PRO Processors - 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.) /3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory - Dual Channel Memory arhitektura - ECC Memory (ECC mode) podrška varira od verzije CPU-a |
| Multi-GPU podrška: | - |
| Integrisana grafička karta: | - 1 x D-Sub - 1 x DVI-D - 1 x HDMI 2.1(4K@60HZ) |
| Slotovi za proširenje: | 3rd Gen AMD Ryzen Processors - 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset - 2 x PCIe 3.0 x1 |
| Skladište: | Ukupna podrška za 2 x M.2 slota i 4 x SATA 6Gb/s porta 3rd Gen AMD Ryzen procesori: - 1 x M.2 Socket 3, sa M Key, Type 2242/2260/2280 (PCIE 4.0 x4 i SATA modes) storage devices podrškom AMD B550 Chipset: - 1 x M.2 soket 3, sa M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 i SATA modes) storage devices podrškom - 4 x SATA 6Gb/s porta, podržava Raid 0, 1, 10 |
| Mrežna karta: | - Realtek RTL8111H 1Gb Ethernet |
| Zvučna karta: | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature: - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| USB: | Rear USB Port ( Total 6 ) - 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) - 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ) - 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) - 4 x USB 2.0 port(s)(4 x Type-A) |

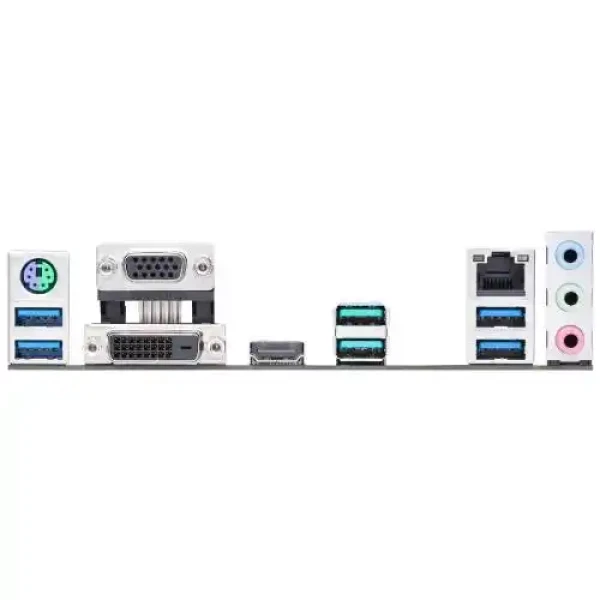

| Konektori na zadnjoj strani: | - 1 x PS/2 keyboard/mouse combo port(s) - 1 x DVI-D - 1 x D-Sub - 1 x HDMI - 1 x LAN (RJ45) port(s) - 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) - 4 x USB 3.2 Gen 1 (blue) Type-A - 3 x Audio jack(s) |
| Interni konektori: | - 1 x CPU Fan connector(s) - 1 x CPU OPT Fan connector(s) - 2 x Chassis Fan connector(s) - 2 x Aura RGB Strip Headers - 1 x Addressable Gen 2 header(s) - 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) - 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) - 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) - 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) - 1 x SPI TPM header - 4 x SATA 6Gb/s connector(s) - 1 x S/PDIF out header(s) - 1 x 24-pin EATX Power connector(s) - 1 x 8-pin EATX 12V Power connectors - 1 x Front panel audio connector(s) (AAFP) - 1 x Clear CMOS jumper(s) - 1 x System panel connector - 1 x COM port header - 1 x Speaker connector |
| BIOS: | - 256 Mb Flash ROM, UEFI AMI BIOS |
| Ostalo: | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Prava potrošača: | Zakonska saobraznost 2 godine |
| EAN: | 4718017755528 |
- Naziv artikla:
- Matična ploča Asus B550M-ACSM DVIHDMIM.2
- Naziv i vrsta robe:
- Matične ploče
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
| Tip procesora: | AMD |
| Podnožje: | AMD® AM4 |
| Čipset: | AMD® B550 |
| Format ploče: | Micro ATX |
| Podržana memorija: | DDR4 |
| Podržani procesori: | - Treća generacija AMD Ryzen procesora |
| Memorija: | 3rd Gen AMD Ryzen procesori - 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.) /3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Next Generation AMD Ryzen PRO Processors - 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.) /3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory - Dual Channel Memory arhitektura - ECC Memory (ECC mode) podrška varira od verzije CPU-a |
| Multi-GPU podrška: | - |
| Integrisana grafička karta: | - 1 x D-Sub - 1 x DVI-D - 1 x HDMI 2.1(4K@60HZ) |
| Slotovi za proširenje: | 3rd Gen AMD Ryzen Processors - 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset - 2 x PCIe 3.0 x1 |
| Skladište: | Ukupna podrška za 2 x M.2 slota i 4 x SATA 6Gb/s porta 3rd Gen AMD Ryzen procesori: - 1 x M.2 Socket 3, sa M Key, Type 2242/2260/2280 (PCIE 4.0 x4 i SATA modes) storage devices podrškom AMD B550 Chipset: - 1 x M.2 soket 3, sa M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 i SATA modes) storage devices podrškom - 4 x SATA 6Gb/s porta, podržava Raid 0, 1, 10 |
| Mrežna karta: | - Realtek RTL8111H 1Gb Ethernet |
| Zvučna karta: | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature: - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| USB: | Rear USB Port ( Total 6 ) - 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) - 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ) - 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) - 4 x USB 2.0 port(s)(4 x Type-A) |
| Konektori na zadnjoj strani: | - 1 x PS/2 keyboard/mouse combo port(s) - 1 x DVI-D - 1 x D-Sub - 1 x HDMI - 1 x LAN (RJ45) port(s) - 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) - 4 x USB 3.2 Gen 1 (blue) Type-A - 3 x Audio jack(s) |
| Interni konektori: | - 1 x CPU Fan connector(s) - 1 x CPU OPT Fan connector(s) - 2 x Chassis Fan connector(s) - 2 x Aura RGB Strip Headers - 1 x Addressable Gen 2 header(s) - 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) - 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) - 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) - 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) - 1 x SPI TPM header - 4 x SATA 6Gb/s connector(s) - 1 x S/PDIF out header(s) - 1 x 24-pin EATX Power connector(s) - 1 x 8-pin EATX 12V Power connectors - 1 x Front panel audio connector(s) (AAFP) - 1 x Clear CMOS jumper(s) - 1 x System panel connector - 1 x COM port header - 1 x Speaker connector |
| BIOS: | - 256 Mb Flash ROM, UEFI AMI BIOS |
| Ostalo: | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Prava potrošača: | Zakonska saobraznost 2 godine |
| EAN: | 4718017755528 |
