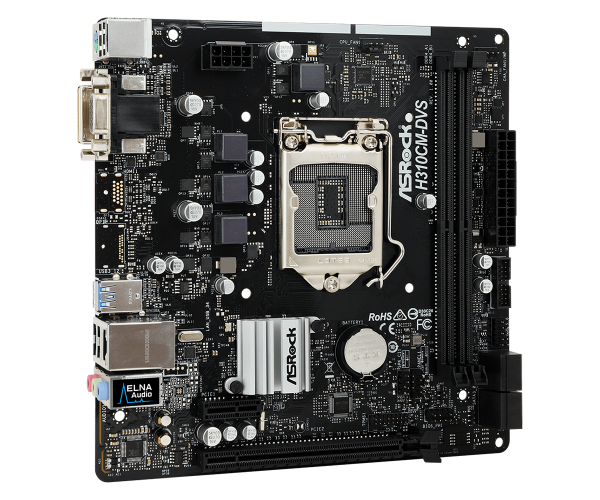

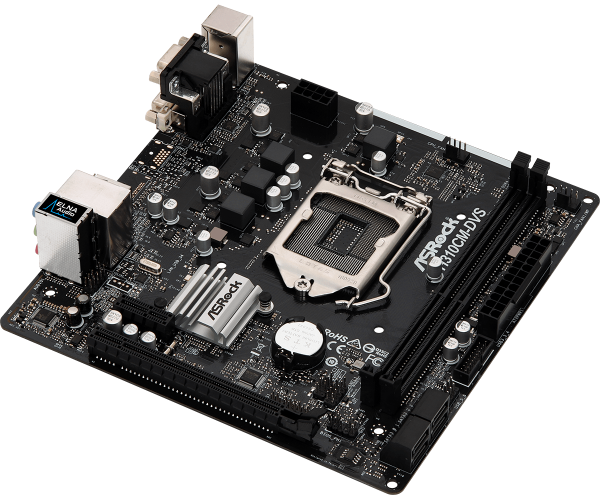

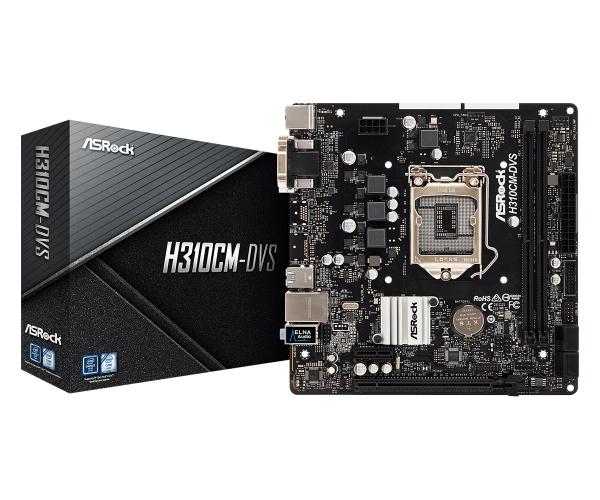

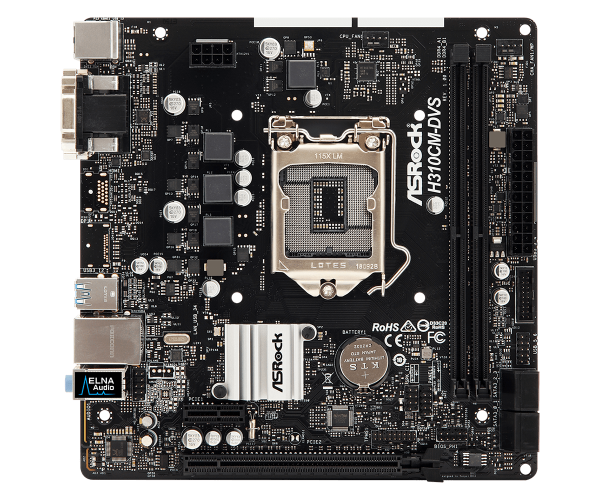

MB AsRock s1151 H310CM-DVS

MB AsRock s1151 H310CM-DVS

Šifra: 38449

Očekivani rok isporuke je 1-7 radnih dana





    WebCena: 5.510,00

    Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.

    • ASRock Super Alloy
      - Sapphire Black PCB
      - High Density Glass Fabric PCB
      ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
      ASRock Live Update & APP Shop
    • CPU
      - Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
      - Supports CPU up to 95W
      - 4 Power Phase design
      - Supports Intel® Turbo Boost 2.0 Technology
    • Chipset
      - Intel® H310
    • Memory
      - Dual Channel DDR4 Memory Technology
      - 2 x DDR4 DIMM Slots
      - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
      - Max. capacity of system memory: 32GB*
      - Supports Intel® Extreme Memory Profile (XMP) 2.0
      - 15μ Gold Contact in DIMM Slots

      *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
    • BIOS
      - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
      - ACPI 6.0 Compliant wake up events
      - SMBIOS 2.7 Support
      - DRAM, PCH 1.05V Voltage Multi-adjustment
    • Graphics
      - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
      - DirectX 12
      - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
      - Dual graphics output: Support DVI-D and D-Sub ports by independent display controllers
      - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
      - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
      - Supports HDCP 2.2 with DVI-D Port

      *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    • Audio
      - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
      - Supports Surge Protection
    • LAN
      - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
      - 1 x Realtek RTL8111H
      - Supports Wake-On-LAN
      - Supports Lightning/ESD Protection
      - Supports Energy Efficient Ethernet 802.3az
      - Supports PXE
    • Slots
      - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
      - 1 x PCI Express 2.0 x1 Slot

      *Supports NVMe SSD as boot disks
    • Storage
      - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
    • Connector
      - 1 x TPM Header
      - 1 x Chassis Intrusion and Speaker Header
      - 1 x CPU Fan Connector (4-pin)*
      - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
      - 1 x 24 pin ATX Power Connector
      - 1 x 8 pin 12V Power Connector
      - 1 x Front Panel Audio Connector
      - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
      - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

      *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

      **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
      CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

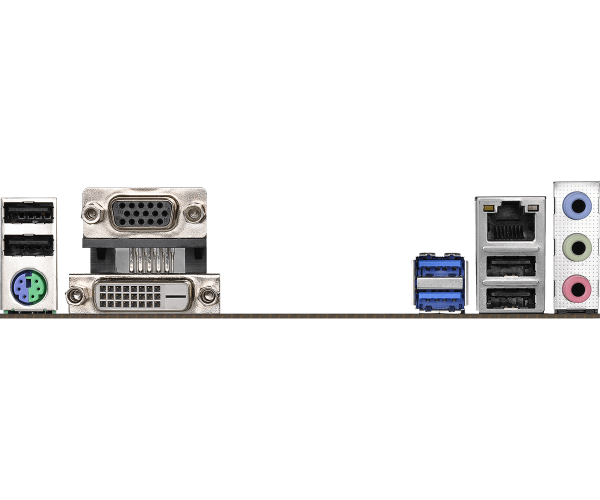

    • Rear Panel I/O
      - 1 x PS/2 Mouse/Keyboard Port
      - 1 x D-Sub Port
      - 1 x DVI-D Port
      - 4 x USB 2.0 Ports (Supports ESD Protection)
      - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
      - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
      - HD Audio Jacks: Line in / Front Speaker / Microphone
    • Software and UEFI
      Software
      - ASRock Motherboard Utility (A-Tuning)
      - ASRock XFast LAN
      UEFI
      - ASRock EZ Mode
      - ASRock Full HD UEFI
      - ASRock My Favorites in UEFI
      - ASRock Instant Flash
      - ASRock Internet Flash

      *These utilities can be downloaded from ASRock Live Update & APP Shop.
    • Support CD
      - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
    • Accessories
      - Quick Installation Guide, Support CD, I/O Shield
      - 2 x SATA Data Cables
    • Hardware Monitor
      - Temperature Sensing: CPU, Chassis/Water Pump Fans
      - Fan Tachometer: CPU, Chassis/Water Pump Fans
      - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
      - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
      - CASE OPEN detection
      - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
    • Form Factor
      - Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm
      - Solid Capacitor design

    • Naziv artikla:
    • MB AsRock s1151 H310CM-DVS
    • Naziv i vrsta robe:
    • Matične ploče
    • Uvoznik:
    • Dostupno na ambalaži proizvoda
    • Zemlja porekla:
    • Dostupno na ambalaži proizvoda
    • Prava potrošača:
    • Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
