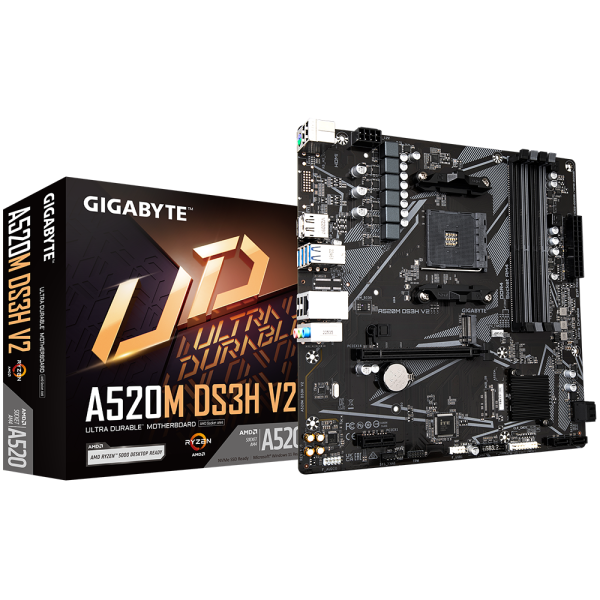

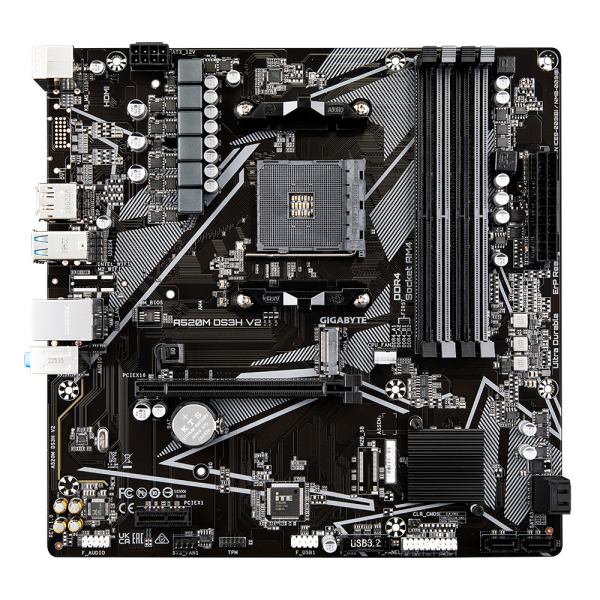

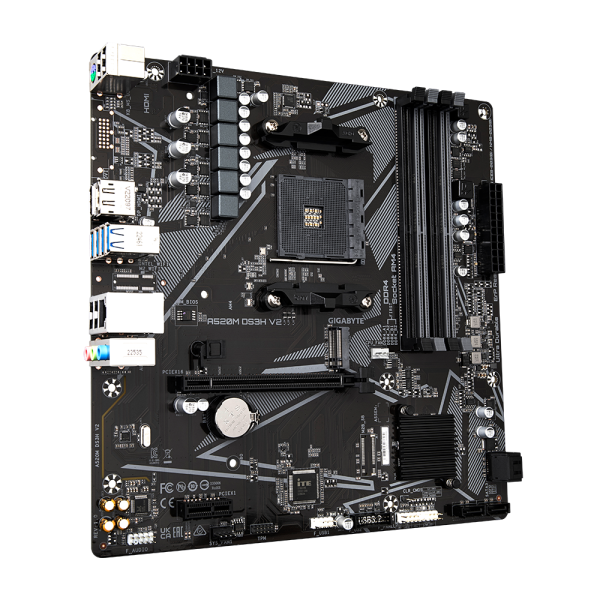

MB Gigabyte AMD AM4 A520M DS3H V2 1.0

MB Gigabyte AMD AM4 A520M DS3H V2 1.0

Šifra: 43506

Očekivani rok isporuke je 1-7 radnih dana





    WebCena: 8.410,00

    Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.

    • CPU
      1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. AMD A520
    • Memory
      1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
      2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
      3. Dual channel memory architecture
      4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
      5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
      Integrated Graphics Processor:
      1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
        * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
        * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
      Maximum shared memory of 16 GB
    • Audio
      1. Realtek® Audio CODEC
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    • LAN
      1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
    • Expansion Slots
      1 x PCI Express x16 slot, integrated in the CPU:
      1. Supporting PCIe 3.0 x16 mode
      1 x PCI Express x1 slot, integrated in the Chipset:
      1. Supporting PCIe 3.0 x1 mode
    • Storage Interface
      1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
      1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
      4 x SATA 6Gb/s connectors, integrated in the Chipset:
      1. Supporting for RAID 0, RAID 1, and RAID 10
    • USB
      CPU:
      1. 4 x USB 3.2 Gen 1 ports on the back panel
      Chipset:
      1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
      2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x CPU fan header
      4. 1 x system fan header
      5. 1 x M.2 Socket 3 connector
      6. 4 x SATA 6Gb/s connectors
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x USB 3.2 Gen 1 header
      10. 1 x USB 2.0/1.1 header
      11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
      12. 1 x Clear CMOS jumper

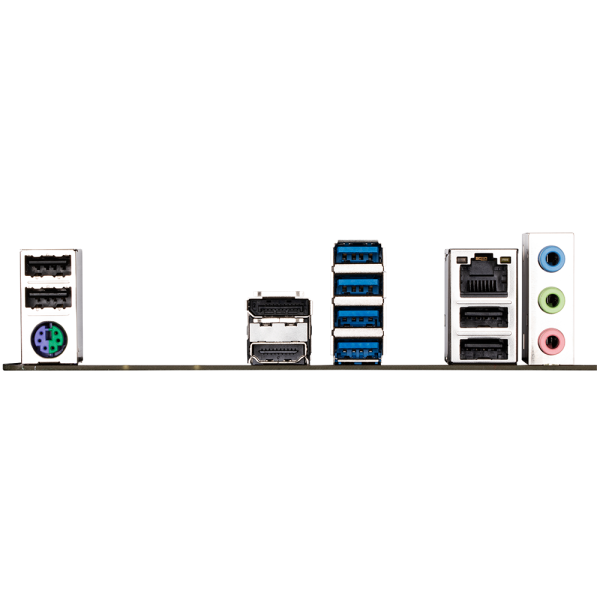

    • Back Panel Connectors
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x DisplayPort
      3. 1 x HDMI port
      4. 4 x USB 3.2 Gen 1 ports
      5. 2 x USB 2.0/1.1 ports
      6. 1 x RJ-45 port
      7. 3 x audio jacks
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Fan fail warning
      5. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        @BIOS
        EasyTune
        Smart Backup
        System Information Viewer
      2. Support for Q-Flash
      3. Support for Xpress Install
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. LAN bandwidth management software
    • Operating System
      1. Support for Windows 11 64-bit
      2. Support for Windows 10 64-bit
    • Form Factor
      1. Micro ATX Form Factor; 24.4cm x 24.4cm

    • Naziv artikla:
    • MB Gigabyte AMD AM4 A520M DS3H V2 1.0
    • Naziv i vrsta robe:
    • Matične ploče
    • Uvoznik:
    • Dostupno na ambalaži proizvoda
    • Zemlja porekla:
    • Dostupno na ambalaži proizvoda
    • Prava potrošača:
    • Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
    • CPU
      1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. AMD A520
    • Memory
      1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
      2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
      3. Dual channel memory architecture
      4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
      5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
      Integrated Graphics Processor:
      1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
        * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
        * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
      Maximum shared memory of 16 GB
    • Audio
      1. Realtek® Audio CODEC
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    • LAN
      1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
    • Expansion Slots
      1 x PCI Express x16 slot, integrated in the CPU:
      1. Supporting PCIe 3.0 x16 mode
      1 x PCI Express x1 slot, integrated in the Chipset:
      1. Supporting PCIe 3.0 x1 mode
    • Storage Interface
      1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
      1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
      4 x SATA 6Gb/s connectors, integrated in the Chipset:
      1. Supporting for RAID 0, RAID 1, and RAID 10
    • USB
      CPU:
      1. 4 x USB 3.2 Gen 1 ports on the back panel
      Chipset:
      1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
      2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x CPU fan header
      4. 1 x system fan header
      5. 1 x M.2 Socket 3 connector
      6. 4 x SATA 6Gb/s connectors
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x USB 3.2 Gen 1 header
      10. 1 x USB 2.0/1.1 header
      11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
      12. 1 x Clear CMOS jumper
    • Back Panel Connectors
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x DisplayPort
      3. 1 x HDMI port
      4. 4 x USB 3.2 Gen 1 ports
      5. 2 x USB 2.0/1.1 ports
      6. 1 x RJ-45 port
      7. 3 x audio jacks
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Fan fail warning
      5. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        @BIOS
        EasyTune
        Smart Backup
        System Information Viewer
      2. Support for Q-Flash
      3. Support for Xpress Install
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. LAN bandwidth management software
    • Operating System
      1. Support for Windows 11 64-bit
      2. Support for Windows 10 64-bit
    • Form Factor
      1. Micro ATX Form Factor; 24.4cm x 24.4cm
