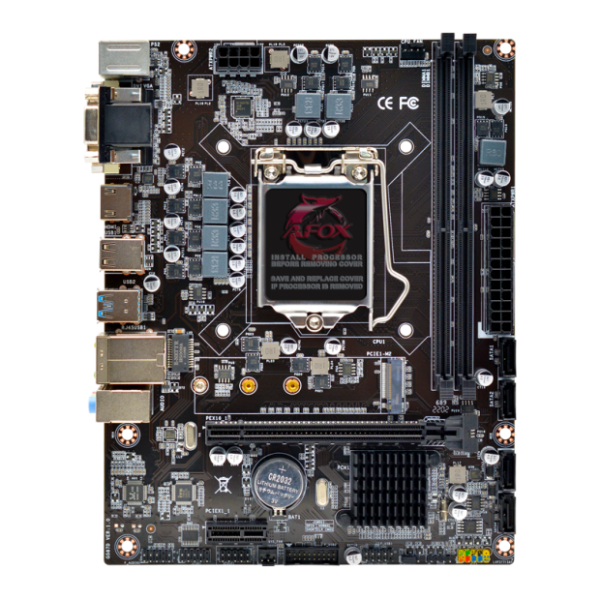

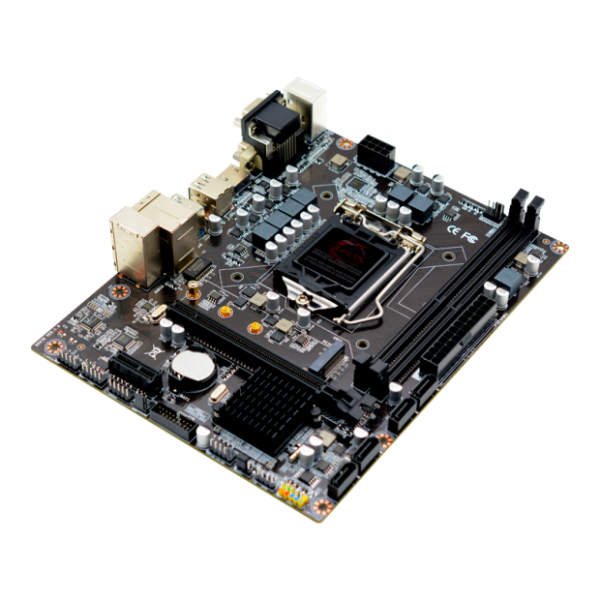

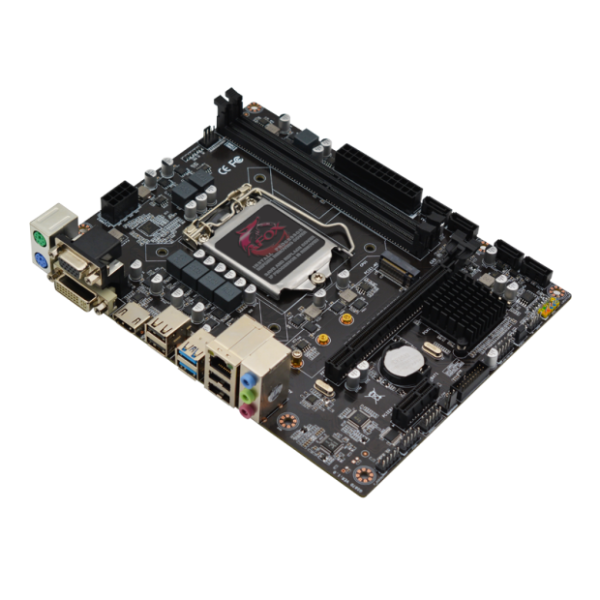

MB s1200 AFOX IH510-MA2-V2
- Proizvod iz grupe: Matične ploče
- Proizvođač: AFOX
- Nema na stanju
Šifra: 18472
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
8.240,00
Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.

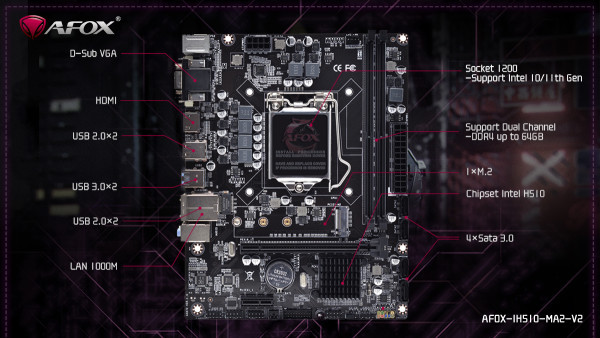

Platform | INTEL Socket 1200 |
Model Name | IH510-MA2-V2 |
Chipset | Intel® H510 |
CPU Supports | Intel Core™ i3 / Core™ i5 / Core™ i7 / Core™ i9 Processors Supports Intel 10th /11th Generation (CPU up to 125 watts) |
FSB | 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz |
Memory | Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz 1.2V |
Dimm | 2 x Memory Slots (Max. capacity of system memory 64GB) |
Onboard Graphics | Intel® HD Graphics |
PCI/PCI-E Slots | 1 x PCI Express x16 4.0 slot, 1 x PCI Express x1 slot |
SATA | 4 x SATA III 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3) |
IDE | N/A |
Audio | Realtek 662 on board, Supports 6-channel audio-out |
LAN | Realtek RTL8111 1000Mbps Ethernet on board |
Back Panel I/Os | 1 x HDMI Port 1 x DVI Port 1 x D-Sub (VGA) Port 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
ON-Board Pinheaders/Connectors | 1x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader, 1 x Com 1 x DEBUG1 |
BIOS | UEFI BIOS |
Form Factor | Micro-ATX (17*22cm) |
Mounting | 6 mounting holes |
Accessories | 1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
- Naziv artikla:
- MB s1200 AFOX IH510-MA2-V2
- Naziv i vrsta robe:
- Matične ploče
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
Platform | INTEL Socket 1200 |
Model Name | IH510-MA2-V2 |
Chipset | Intel® H510 |
CPU Supports | Intel Core™ i3 / Core™ i5 / Core™ i7 / Core™ i9 Processors Supports Intel 10th /11th Generation (CPU up to 125 watts) |
FSB | 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz |
Memory | Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz 1.2V |
Dimm | 2 x Memory Slots (Max. capacity of system memory 64GB) |
Onboard Graphics | Intel® HD Graphics |
PCI/PCI-E Slots | 1 x PCI Express x16 4.0 slot, 1 x PCI Express x1 slot |
SATA | 4 x SATA III 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3) |
IDE | N/A |
Audio | Realtek 662 on board, Supports 6-channel audio-out |
LAN | Realtek RTL8111 1000Mbps Ethernet on board |
Back Panel I/Os | 1 x HDMI Port 1 x DVI Port 1 x D-Sub (VGA) Port 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
ON-Board Pinheaders/Connectors | 1x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader, 1 x Com 1 x DEBUG1 |
BIOS | UEFI BIOS |
Form Factor | Micro-ATX (17*22cm) |
Mounting | 6 mounting holes |
Accessories | 1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
