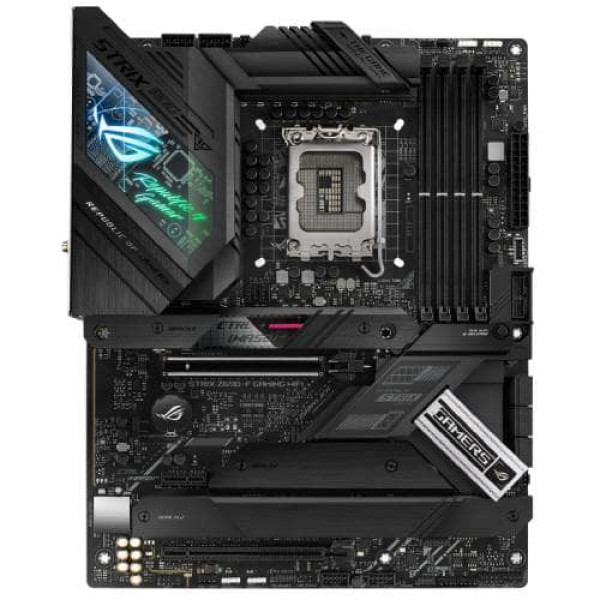

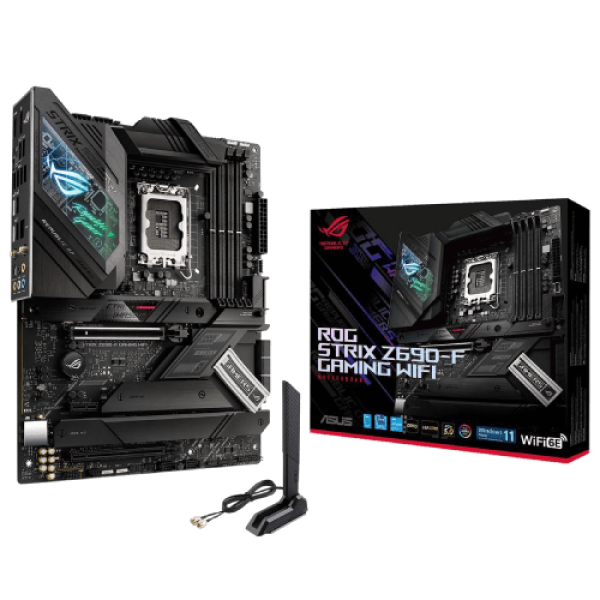

MB s1700 ASUS ROG STRIX Z690-F GAMING WIFI
- Proizvod iz grupe: Matične ploče
- Proizvođač: ASUS
- Na stanju
Šifra: 47100
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
44.870,00
Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
| Tip procesora: | Intel |
| Podnožje: | Intel® 1700 |
| Čipset: | Intel® Z690 |
| Format ploče: | ATX |
| Podržana memorija: | DDR5 |
| Bluetooth: | Da |
| Podržani procesori: | Intel Socket LGA1700 i 12-a generacija Intel Core, Pentium Gold i Celeron procesora Podržava Intel Turbo Boost Technology 2.0 i Intel Turbo Boost Max Technology 3.0 |
| Memorija: | 4 x DIMM, maksimalno podržano 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC, Un-buffered memorije Dual Channel Memory arhitektura Podržava Intel Extreme Memory Profile (XMP) |
| Integrisana grafička karta: | 1 x HDMI port 1 x DisplayPort |
| Slotovi za proširenje: | Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot - Intel 12th support PCIe 5.0 x16 mode Intel Z690 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode) 1 x PCIe 3.0 x1 slot |
| Skladište: | Intel®12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 6 x SATA 6Gb/s ports Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. *** RAID configuration is not supported on the SATA6G_E1-2 ports. |
| Mrežna karta: | 1 x Intel 2.5Gb Ethernet 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2 Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 hardware ready |
| Zvučna karta: | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| USB: | Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 7 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |

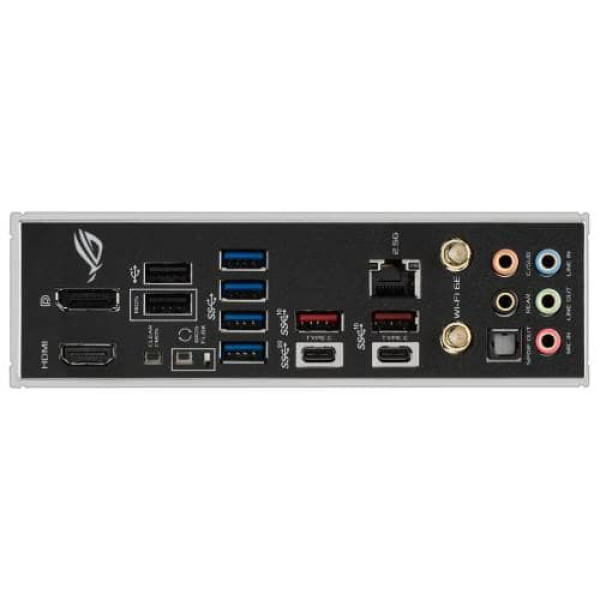

| Konektori na zadnjoj strani: | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C ) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Interni konektori: | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x BMC header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |
- Naziv artikla:
- MB s1700 ASUS ROG STRIX Z690-F GAMING WIFI
- Naziv i vrsta robe:
- Matične ploče
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
| Tip procesora: | Intel |
| Podnožje: | Intel® 1700 |
| Čipset: | Intel® Z690 |
| Format ploče: | ATX |
| Podržana memorija: | DDR5 |
| Bluetooth: | Da |
| Podržani procesori: | Intel Socket LGA1700 i 12-a generacija Intel Core, Pentium Gold i Celeron procesora Podržava Intel Turbo Boost Technology 2.0 i Intel Turbo Boost Max Technology 3.0 |
| Memorija: | 4 x DIMM, maksimalno podržano 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC, Un-buffered memorije Dual Channel Memory arhitektura Podržava Intel Extreme Memory Profile (XMP) |
| Integrisana grafička karta: | 1 x HDMI port 1 x DisplayPort |
| Slotovi za proširenje: | Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot - Intel 12th support PCIe 5.0 x16 mode Intel Z690 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode) 1 x PCIe 3.0 x1 slot |
| Skladište: | Intel®12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 6 x SATA 6Gb/s ports Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. *** RAID configuration is not supported on the SATA6G_E1-2 ports. |
| Mrežna karta: | 1 x Intel 2.5Gb Ethernet 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2 Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 hardware ready |
| Zvučna karta: | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| USB: | Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 7 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Konektori na zadnjoj strani: | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C ) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Interni konektori: | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x BMC header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |
