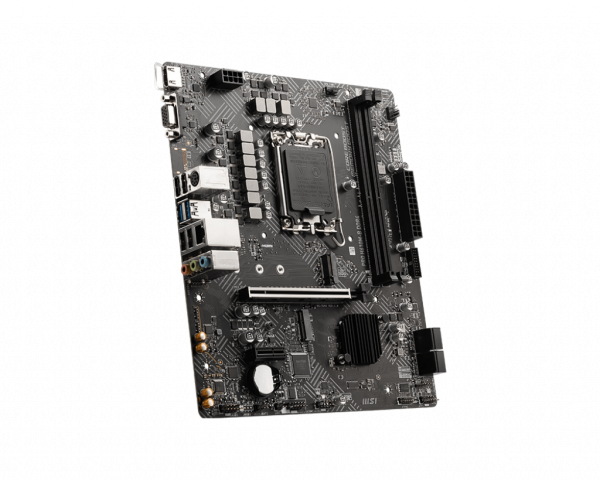

MB s1700 MSI PRO H610M-B DDR4
- Proizvod iz grupe: Matične ploče
- Proizvođač: MSI
- Nema na stanju
Šifra: 22102
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
10.160,00
Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
Processor
- Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
- Processor socket LGA1700
- Please go to www.msi.com to get the newest support status as new processors are released.
Chipset
Intel® H610 Chipset
Memory
- 2x DDR4 memory slots, support up to 64GB 1
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Please refer to www.msi.com for more information on compatible memory.
Expansion Slot
- 1x PCIe x16 slot (From CPU)
- Supports up to PCIe 4.0 x16
- 1x PCIe x1 slot
- Supports PCIe 3.0 x1
- 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)
Onboard Graphics
SATA Ports
- 4x SATA 6Gb/s ports1
- SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD Slot
- 1x M.2 slot (Key M, from chipset) 1
- Supports up to PCIe 3.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Supports Intel® Smart Response Technology for Intel Core™ processors
- SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
Audio
Realtek® ALC892/ ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Intel® I219V 1Gbps LAN controller
Power Connectors
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
USB
Intel® H610 Chipset
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Fan Connectors
- 1x 4-pin CPU fan connector
- 1x 4-pin System fan connector
System Connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
Jumpers
- 1x Clear CMOS jumper
LED Features
- 4x EZ Debug LED

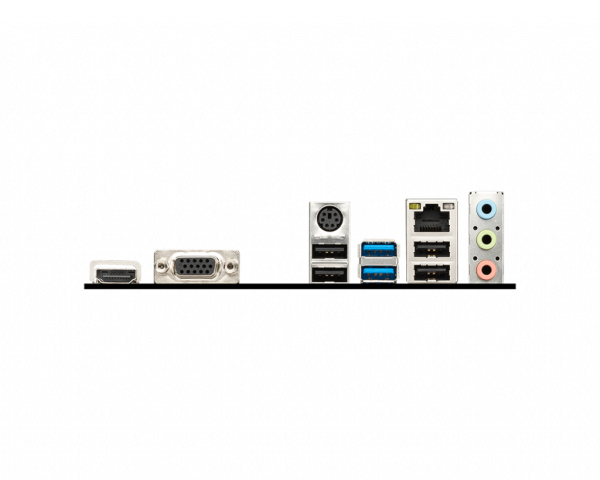

Back panel ports
- HDMI
- VGA
- Keyboard/Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- LAN port
- Audio connector
- USB 2.0
Dimensions
- M-ATX Form Factor
- 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
- Naziv artikla:
- MB s1700 MSI PRO H610M-B DDR4
- Naziv i vrsta robe:
- Matične ploče
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
Processor
- Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
- Processor socket LGA1700
- Please go to www.msi.com to get the newest support status as new processors are released.
Chipset
Intel® H610 Chipset
Memory
- 2x DDR4 memory slots, support up to 64GB 1
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Please refer to www.msi.com for more information on compatible memory.
Expansion Slot
- 1x PCIe x16 slot (From CPU)
- Supports up to PCIe 4.0 x16
- 1x PCIe x1 slot
- Supports PCIe 3.0 x1
- 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)
Onboard Graphics
SATA Ports
- 4x SATA 6Gb/s ports1
- SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD Slot
- 1x M.2 slot (Key M, from chipset) 1
- Supports up to PCIe 3.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Supports Intel® Smart Response Technology for Intel Core™ processors
- SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
Audio
Realtek® ALC892/ ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Intel® I219V 1Gbps LAN controller
Power Connectors
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
USB
Intel® H610 Chipset
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Fan Connectors
- 1x 4-pin CPU fan connector
- 1x 4-pin System fan connector
System Connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
Jumpers
- 1x Clear CMOS jumper
LED Features
- 4x EZ Debug LED
Back panel ports
- HDMI
- VGA
- Keyboard/Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- LAN port
- Audio connector
- USB 2.0
Dimensions
- M-ATX Form Factor
- 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
