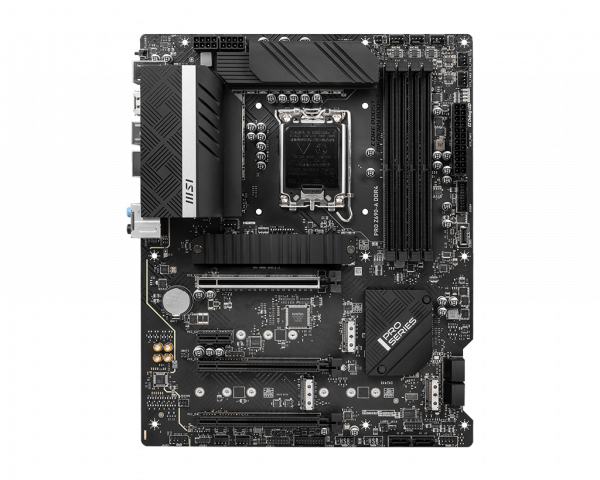

MB s1700 MSI PRO Z690-A DDR4
- Proizvod iz grupe: Matične ploče
- Proizvođač: Nedefinisan1
- Nema na stanju
Šifra: 22104
Očekivani rok isporuke je 1-7 radnih dana
WebCena:
30.700,00
Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
PROCESSOR
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
Processor socket LGA1700
- Please go to msi.com to get the newest support status as new processors are released.
CHIPSET
Intel® Z690 Chipset
MEMORY
- 4x DDR4 memory slots, support up to 128GB 1
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5200+ MHz
- 1DPC 2R Max speed up to 4800+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer www.msi.com for more information on compatible memory
EXPANSION SLOT
- 3x PCIe x16 slots
- PCI_E1 (from CPU)
- Supports up to PCIe 5.0 x16
- PCI_E3 & PCI_E4 (from Z690 chipset)
- Supports up to PCIe 3.0 x4 & 3.0 x1
- PCI_E1 (from CPU)
- 1x PCIe 3.0 x1 slot (from Z690 chipset)
ONBOARD GRAPHICS
MULTI-GPU
- Supports AMD® CrossFire™ Technology
STORAGE
- 6x SATA 6Gb/s ports (from Z690 chipset)
- 4x M.2 slots (Key M)
- M2_1 slot (from CPU)
- Supports PCIe 4.0 x4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from Z690 chipset)
- Supports PCIe 4.0 x4
- Supports 2242/ 2260/ 2280 storage devices
- M2_3 slot (from Z690 chipset)
- Supports PCIe 3.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_4 slot (from Z690 chipset)
- Supports PCIe 4.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset
- M2_1 slot (from CPU)
- Support Intel® Smart Response Technology for Intel Core™ processors
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB
- Intel® Z690 Chipset
- 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
- 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
- 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors)
- 4x USB 2.0 Type-A ports on the back panel
- USB Hub GL850G
- 4x USB 2.0 ports are available through the internal USB connectors
AUDIO
Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Intel® I225-V 2.5Gbps LAN
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 4x M.2 slots (M-Key)
- 1x USB 3.2 Gen 2 10Gbps Type-C port
- 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 6x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- 1x TPM module connector
- 1x Tuning controller connector
- 1x TBT connector (Supports RTD3)
LED FEATURE
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 4x EZ Debug LED
BACK PANEL PORTS
- Keyboard / Mouse
- DisplayPort
- USB 2.0
- LAN port
- Audio connector
- Flash BIOS Button
- USB 2.0
- HDMI
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 2x2 20Gbps Type-C
- USB 3.2 Gen 2 10Gbps Type-A
DIMENSIONS
- ATX Form Factor
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
MOUNTING
9 mounting holes
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
- Naziv artikla:
- MB s1700 MSI PRO Z690-A DDR4
- Naziv i vrsta robe:
- Matične ploče
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
PROCESSOR
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
Processor socket LGA1700
- Please go to msi.com to get the newest support status as new processors are released.
CHIPSET
Intel® Z690 Chipset
MEMORY
- 4x DDR4 memory slots, support up to 128GB 1
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5200+ MHz
- 1DPC 2R Max speed up to 4800+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer www.msi.com for more information on compatible memory
EXPANSION SLOT
- 3x PCIe x16 slots
- PCI_E1 (from CPU)
- Supports up to PCIe 5.0 x16
- PCI_E3 & PCI_E4 (from Z690 chipset)
- Supports up to PCIe 3.0 x4 & 3.0 x1
- PCI_E1 (from CPU)
- 1x PCIe 3.0 x1 slot (from Z690 chipset)
ONBOARD GRAPHICS
MULTI-GPU
- Supports AMD® CrossFire™ Technology
STORAGE
- 6x SATA 6Gb/s ports (from Z690 chipset)
- 4x M.2 slots (Key M)
- M2_1 slot (from CPU)
- Supports PCIe 4.0 x4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from Z690 chipset)
- Supports PCIe 4.0 x4
- Supports 2242/ 2260/ 2280 storage devices
- M2_3 slot (from Z690 chipset)
- Supports PCIe 3.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_4 slot (from Z690 chipset)
- Supports PCIe 4.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset
- M2_1 slot (from CPU)
- Support Intel® Smart Response Technology for Intel Core™ processors
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB
- Intel® Z690 Chipset
- 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
- 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
- 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors)
- 4x USB 2.0 Type-A ports on the back panel
- USB Hub GL850G
- 4x USB 2.0 ports are available through the internal USB connectors
AUDIO
Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Intel® I225-V 2.5Gbps LAN
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 4x M.2 slots (M-Key)
- 1x USB 3.2 Gen 2 10Gbps Type-C port
- 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 6x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- 1x TPM module connector
- 1x Tuning controller connector
- 1x TBT connector (Supports RTD3)
LED FEATURE
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 4x EZ Debug LED
BACK PANEL PORTS
- Keyboard / Mouse
- DisplayPort
- USB 2.0
- LAN port
- Audio connector
- Flash BIOS Button
- USB 2.0
- HDMI
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 2x2 20Gbps Type-C
- USB 3.2 Gen 2 10Gbps Type-A
DIMENSIONS
- ATX Form Factor
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
MOUNTING
9 mounting holes
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
