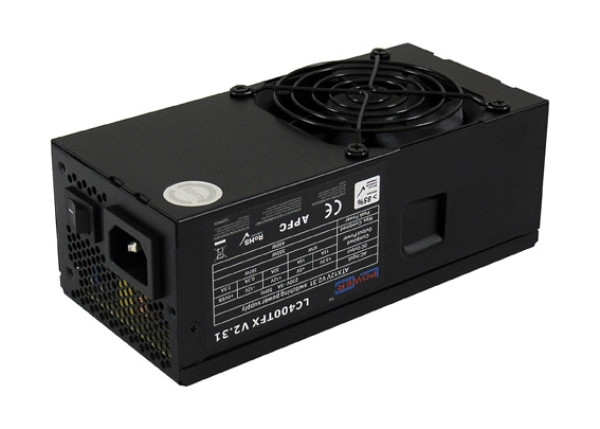

Napajanje 400W LC Power LC400TFX V2.31
Očekivani rok isporuke je 1-7 radnih dana
Za sve porudžbine čija je vrednost do 10.000 dinara, isporuka kurirskom službom se naplaćuje po zvaničnom cenovniku kurirske službe možete pogledati na sledećem linku. Vidi cenovnik. Besplatna isporuka na kućnu adresu važi za narudžbine u vrednosti preko 10.000 dinara i do 5kg težine, a ne spadaju u kategoriju SPECIJALNA ISPORUKA.
Technical overview
| Power supply type | TFX V2.31 |
| Connectors | |
| 20+4 pin mainboard | 1x 37 cm |
| 4+4 pin mainboard 12V EPS | 1x 40 cm |
| PCI-Express | 1x PCI-Express 6 pin 40 cm 1x PCI-Express 6+2 pin 52 cm |
| SATA | 4 (1x 37 / 1x 50 / 1x 65 / 1x 80 cm) |
| PATA | 2 (1x 53 / 1x 67 cm) |
| FDD | 1x 82 cm |
| Mark of conformity | CE |
| Fan | 80 mm |
| PFC | active |
| Dimension h x w x d | 69 x 85 x 175 mm |
| Weight (retail) | 1,23 kg |
| Power rating | 350W |
| max. peak load | 400W |
| +3,3V | 15A |
| +5V | 15A |
| max. combined | 97W |
| +12V | 32A |
| max. combined | 397W |
| Efficiency | >85% |
| Standby consumption | 0,24W - ErP 2013 |
| Security circuitry | OVP = Over-Voltage Protection OPP = Over-Power Protection SCP = Short-Circuit Protection |
| Multirange (110V/220V) | no |
| Haswell compatible | yes |
| Barcode | 4260070124792 |
| Manufacturer code | LC400TFX V2.31 |
PDF:
Characteristics:
The TFX PSU LC400TFX V2.31 by LC-POWER offers a good price-performance ratio. Thanks to its 80 mm fan, the power supply lets you experience a stress-free and silent operation for your HTPC. Despite the low sound level, the power supply offers a good cooling capacity for your system thanks to its ventilation grille on its back. The power supply features all relevant connectors of the office sector.
The state-of-the-art energy saving technology decreases the power consumption in standby mode (0,24W) and increases the efficiency of the power supply > 85%!
350W
Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
- Naziv artikla:
- Napajanje 400W LC Power LC400TFX V2.31
- Naziv i vrsta robe:
- Napajanja
- Uvoznik:
- Dostupno na ambalaži proizvoda
- Zemlja porekla:
- Dostupno na ambalaži proizvoda
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
Technical overview
| Power supply type | TFX V2.31 |
| Connectors | |
| 20+4 pin mainboard | 1x 37 cm |
| 4+4 pin mainboard 12V EPS | 1x 40 cm |
| PCI-Express | 1x PCI-Express 6 pin 40 cm 1x PCI-Express 6+2 pin 52 cm |
| SATA | 4 (1x 37 / 1x 50 / 1x 65 / 1x 80 cm) |
| PATA | 2 (1x 53 / 1x 67 cm) |
| FDD | 1x 82 cm |
| Mark of conformity | CE |
| Fan | 80 mm |
| PFC | active |
| Dimension h x w x d | 69 x 85 x 175 mm |
| Weight (retail) | 1,23 kg |
| Power rating | 350W |
| max. peak load | 400W |
| +3,3V | 15A |
| +5V | 15A |
| max. combined | 97W |
| +12V | 32A |
| max. combined | 397W |
| Efficiency | >85% |
| Standby consumption | 0,24W - ErP 2013 |
| Security circuitry | OVP = Over-Voltage Protection OPP = Over-Power Protection SCP = Short-Circuit Protection |
| Multirange (110V/220V) | no |
| Haswell compatible | yes |
| Barcode | 4260070124792 |
| Manufacturer code | LC400TFX V2.31 |
PDF:
Characteristics:
The TFX PSU LC400TFX V2.31 by LC-POWER offers a good price-performance ratio. Thanks to its 80 mm fan, the power supply lets you experience a stress-free and silent operation for your HTPC. Despite the low sound level, the power supply offers a good cooling capacity for your system thanks to its ventilation grille on its back. The power supply features all relevant connectors of the office sector.
The state-of-the-art energy saving technology decreases the power consumption in standby mode (0,24W) and increases the efficiency of the power supply > 85%!
350W
Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
